Axiom 2WD V6-3.5L (2002)
Alignment: Service and Repair

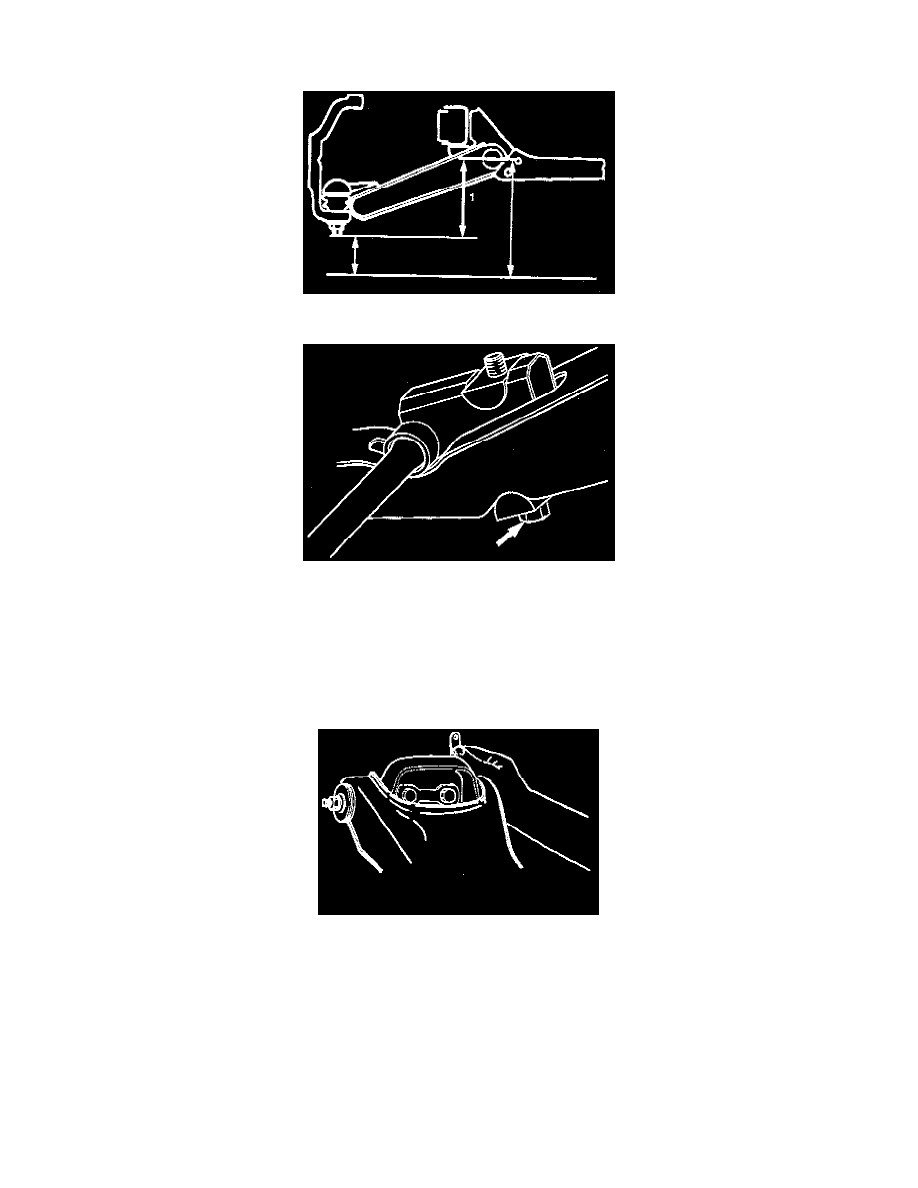

Trim Height Adjustment
Adjust the trim height (1) by means of the adjusting bolt on the height control arms.
Caution: When adjusting front end alignment, be sure to begin with trim height first, as it may change other adjusted alignments.
1. Check and adjust the tire inflation pressures.
2. Park the vehicle on a level ground and move the front of the vehicle up and down several times to settle the suspension.
3. Make necessary adjustment with the adjusting bolt on the height control arms.
Trim height: 119 ±5 mm (4.69 ±0.2 inch)
Caster Adjustment
