Axiom 2WD V6-3.5L (2002)
Torque: 152 Nm (112 ft. lbs.)

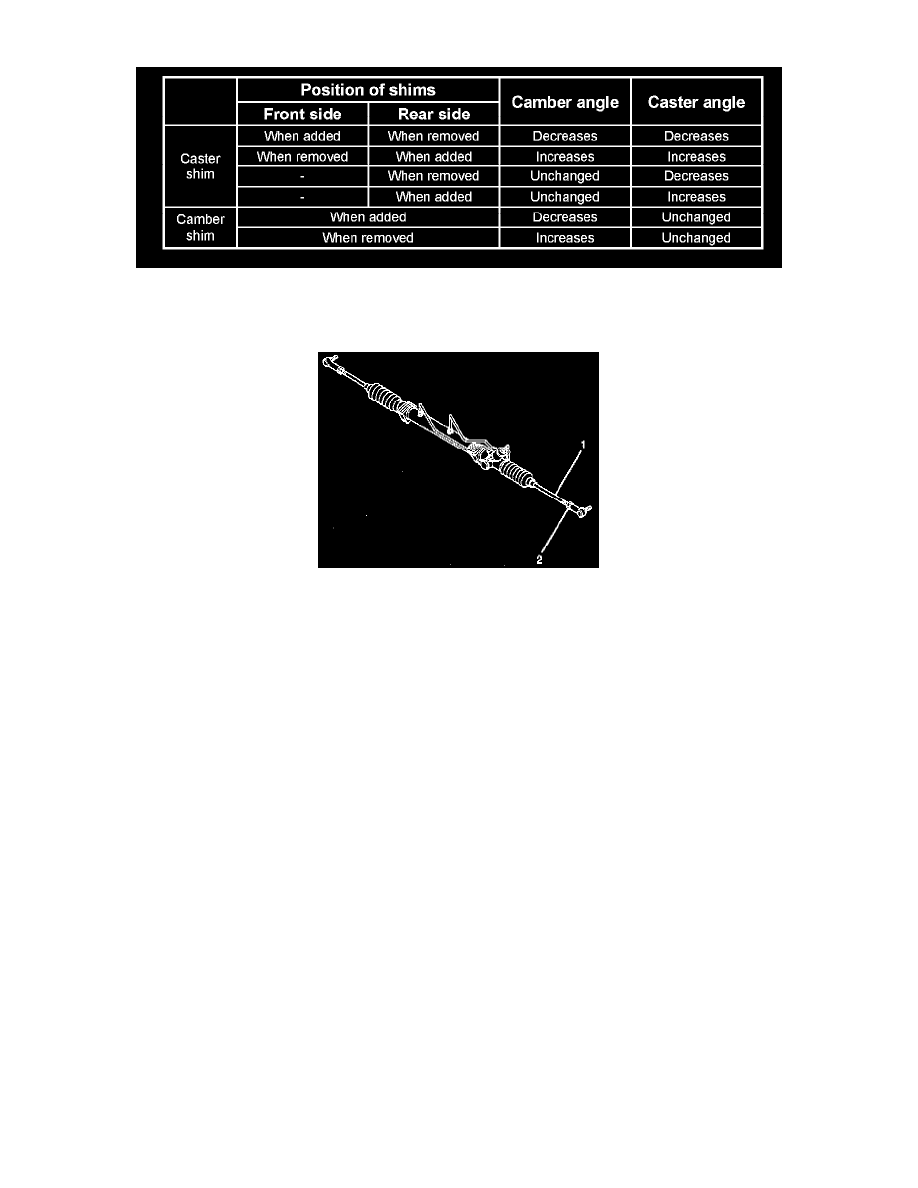

Position Table
Toe-in Adjustment
1. To adjust the toe-in angle, loosen the lock nuts (2) on the tie rod (1) and turn the tie rod.
Turn both rods the same amount, to keep the steering wheel centered.
Toe-in: 0 to +2 mm (0 to +0.08 inch)
2. Tighten the lock nut to the specified torque.
Torque: 98 Nm (72 ft. lbs.)
