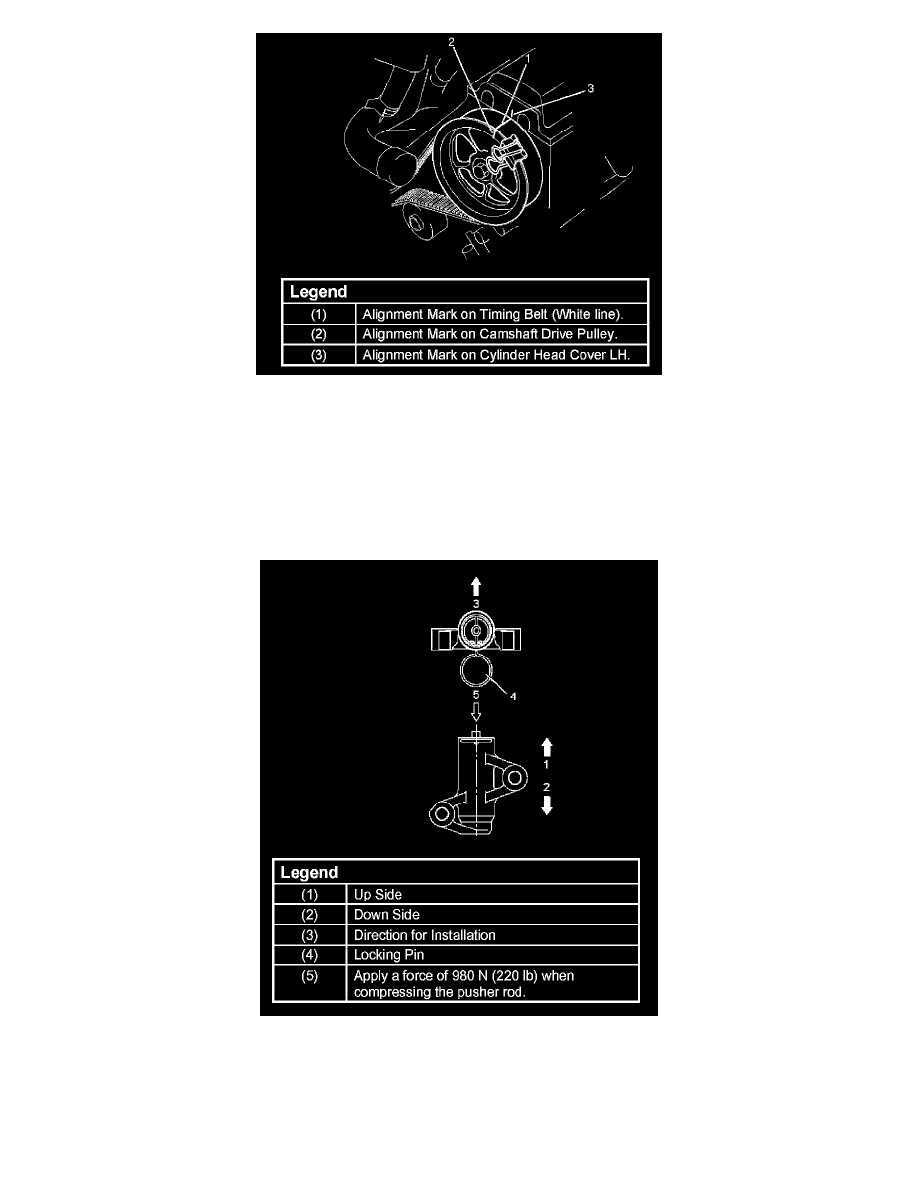

Align the alignment mark (white line) on the timing belt (1) with the alignment mark on the LH bank camshaft drive pulley (2).
When aligning the timing marks, use a wrench to turn the camshaft drive pulley, then set the timing mark between timing belt and camshaft
drive pulley and put the timing belt on the camshaft drive pulley.
Secure the belt with a double clip or equivalent clip.
Note: It is recommended for easy installation the belt be secured with a double clip or equivalent clips after it is installed to each pulley.
6
Install crankshaft pulley temporarily and tighten center bolt by hand (do not use a wrench).
Turn the crankshaft pulley clockwise to give some belt slack between the crankshaft timing pulley and the RH bank camshaft drive pulley.
2. Install pusher and tighten bolt to the specified torque.
Torque: 25 Nm (2.5 kgf-m/18 ft. lbs.)
1
Install the pusher while pushing the tension pulley to the belt.
2
Pull out pin from the pusher.
Note: When reusing the pusher, press the pusher with approximately 100Kg to retract the rod, and insert a pin (1.4 mm (0.055 inch) piano
wire).
