Timing Belt: Specifications (page 8 of 9)

Make
Isuzu
Model
Axiom 2WD
Engine
V6-3.5L
Year
2002
Section
Timing Belt
MaintenanceSpecifications · page 8 of 9
background image

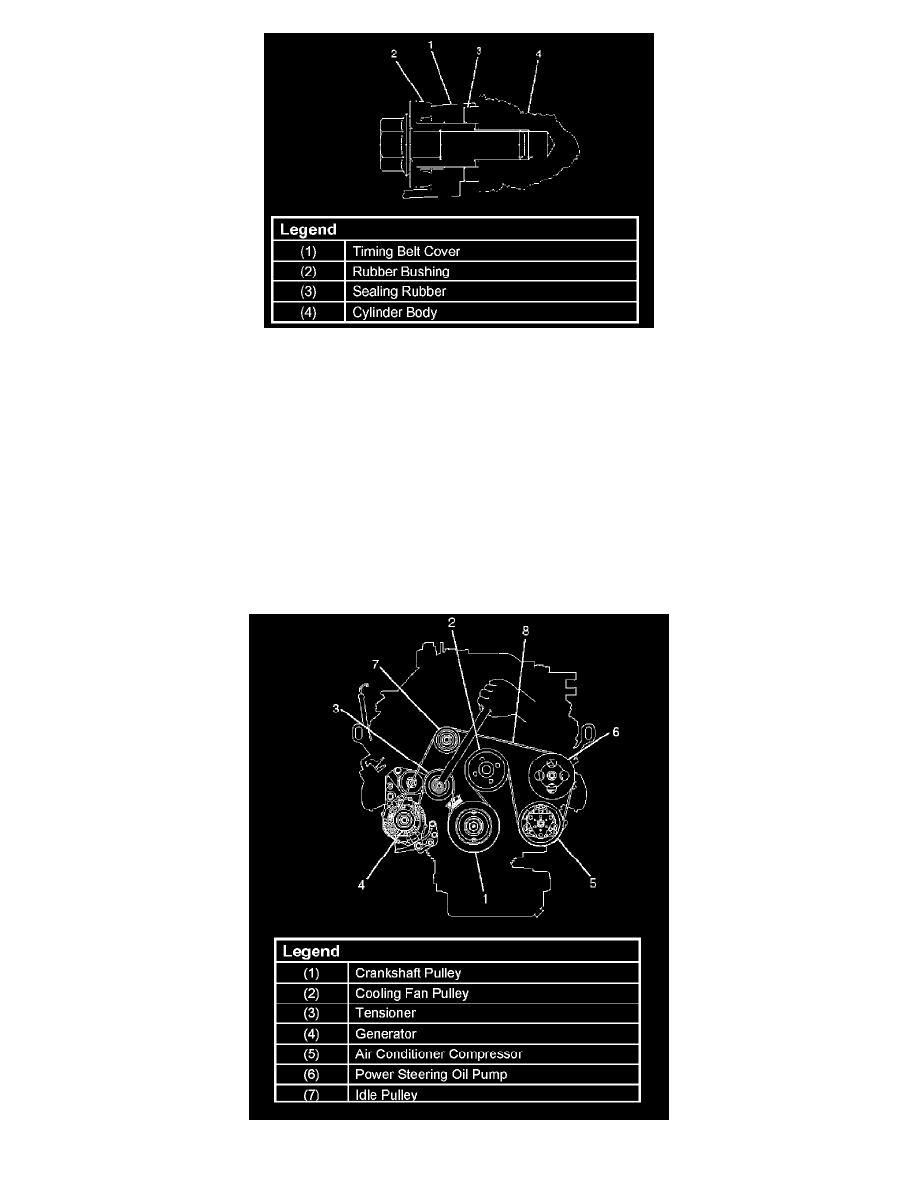

3. Install timing belt cover.

Remove crankshaft pulley that was installed in step 1 item 5.
Tighten bolts to the specified torque.
Torque: 9 Nm (14 ft. lbs.)

4. Install crankshaft pulley using J-8614-01, hold the crankshaft pulley and tighten center bolt to the specified torque.

Torque: 167 Nm (123 ft. lbs.)

5. Install fan pulley bracket and tighten fixing bolts to the specified torque.

Torque: 22 Nm (16 ft. lbs.)

6. Install power steering pump assembly and tighten to the specified torque.

Torque:
M8 bolt: 22 Nm (16 ft. lbs.)
M10 bolt: 46 Nm (34 ft. lbs.)

7. Install cooling fan assembly and tighten bolts/nuts to the specified torque.

Torque: 22 Nm (16 ft. lbs.) for fan pulley and fan bracket.
Torque: 7.5 Nm (66.4 inch lbs.) for fan and clutch assembly.
