Axiom XS 2WD V6-3.5L (2002)

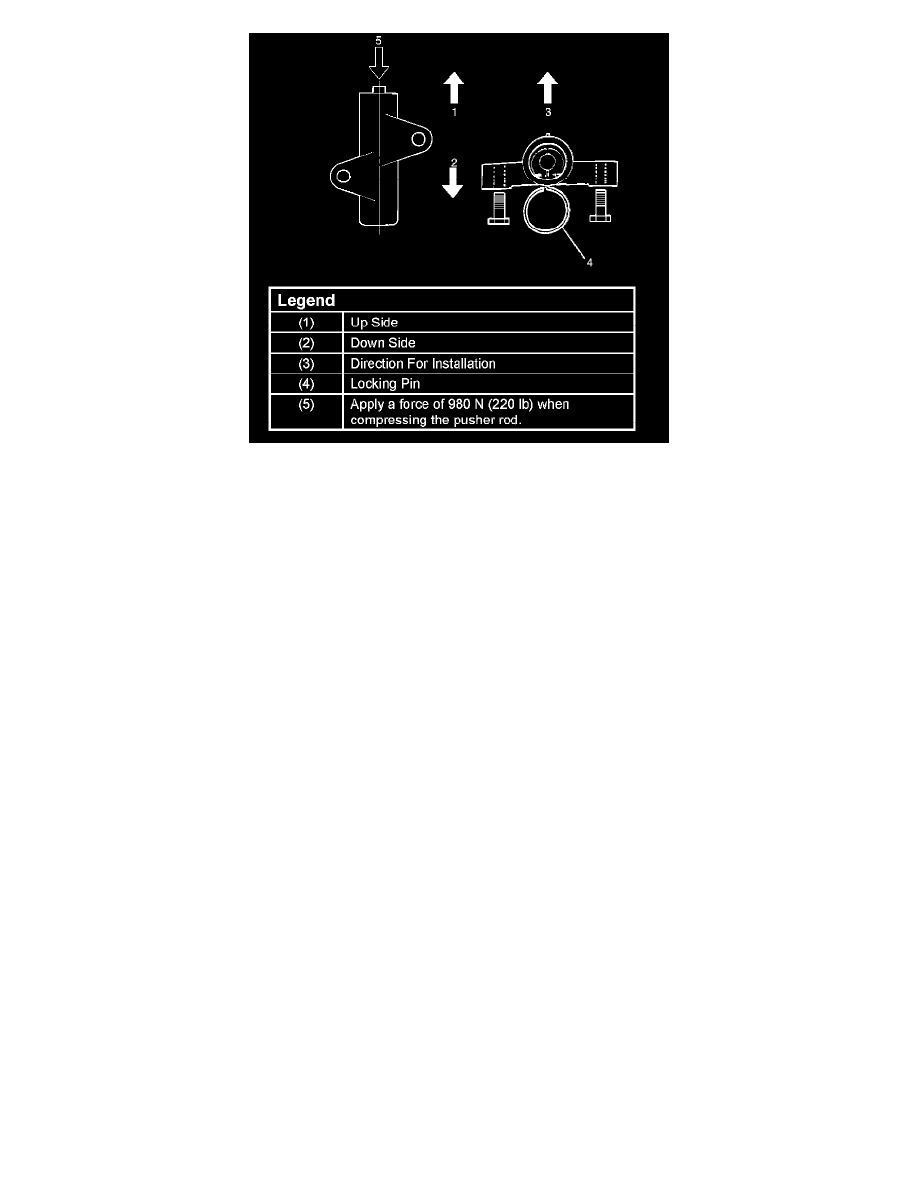

13. Remove pusher.
Caution: The pusher prevents air from entering the oil chamber. Its rod must always be facing upward.
14. Remove timing belt.
Caution:
1
Do not bend or twist the belt, otherwise its core could be damaged. The belt should not tee bent et a radius less than 30 mm (1.1811 inch).
2
Do not allow oil or other chemical substances to come in contact with the belt. They will shorten the life.
3
Do not attempt to pry or stretch the belt with a screw driver or any other tool during installation.
4
Store timing belt in a cool and dark place. Never expose the belt direct sunlight or heat
Installation
