Hombre S Space Cab 2WD V6-4.3L (2000)
Air Injection Vacuum Control Solenoid Valve: Service and Repair
Removal Procedure
CAUTION: Refer to Battery Disconnect Caution in Service Precautions.
1. Disconnect the negative battery cable.
2. Raise the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.
3. For a 2WD vehicle, skip steps 6 and 7. For a 4WD vehicle, skip steps 4 and 5.

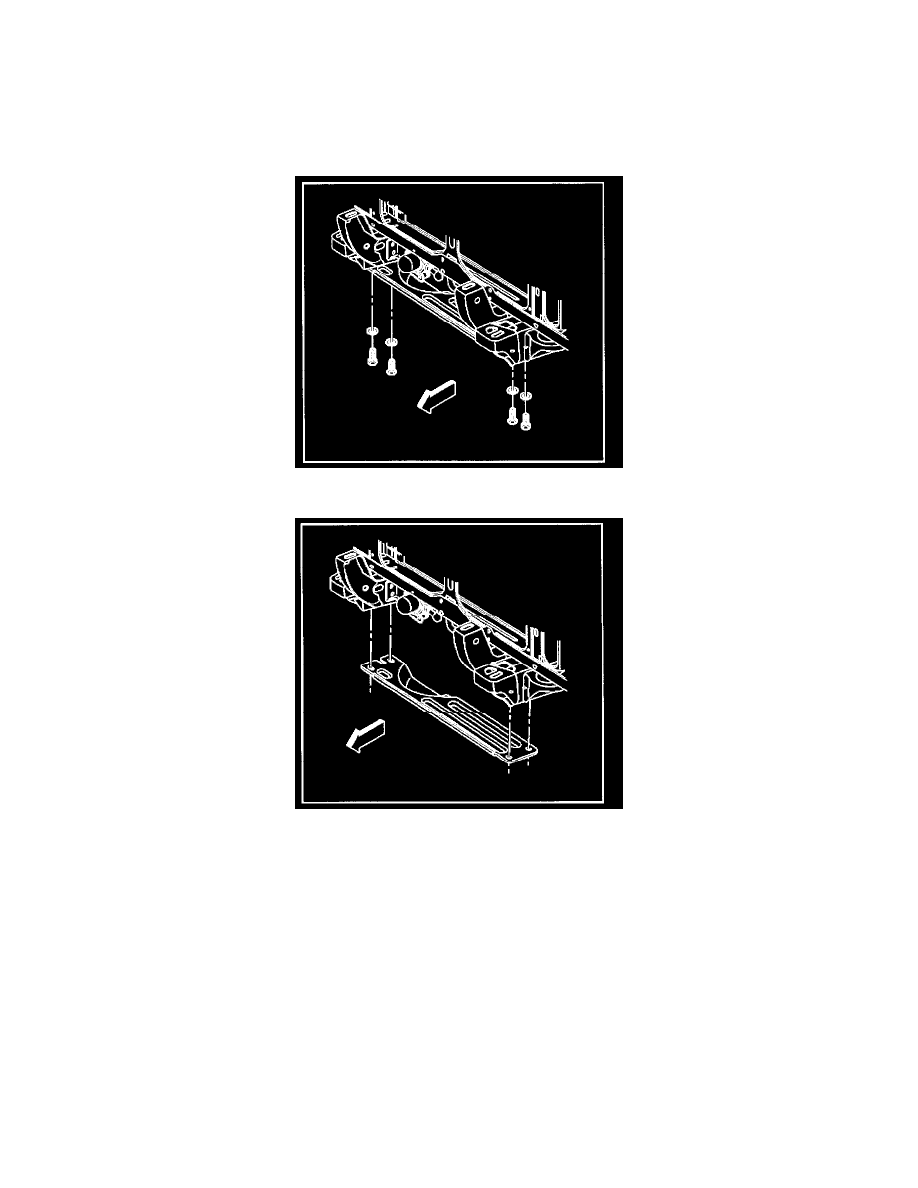

4. Remove the AIR shield mounting bolts.
