Hombre XS Space Cab 2WD V6-4.3L (1998)
Pressure Regulating Solenoid: Service and Repair
Removal Procedure
Tools Required
J 28458 Power Piston Seal Protector and Diaphragm
Retainer Installer
1. Remove the warm-up three-way catalytic converter and the heat shield. Refer to Catalytic Converter Replacement in Engine Exhaust.
2. Remove the oil pan and the oil filter. Refer to AT Fluid/Filter Changing.
3. Remove the external wiring harness connector from the transmission pass-through connector.
Squeeze the fore and aft flats on the connector in order to release the locking tabs. Pull the connector.

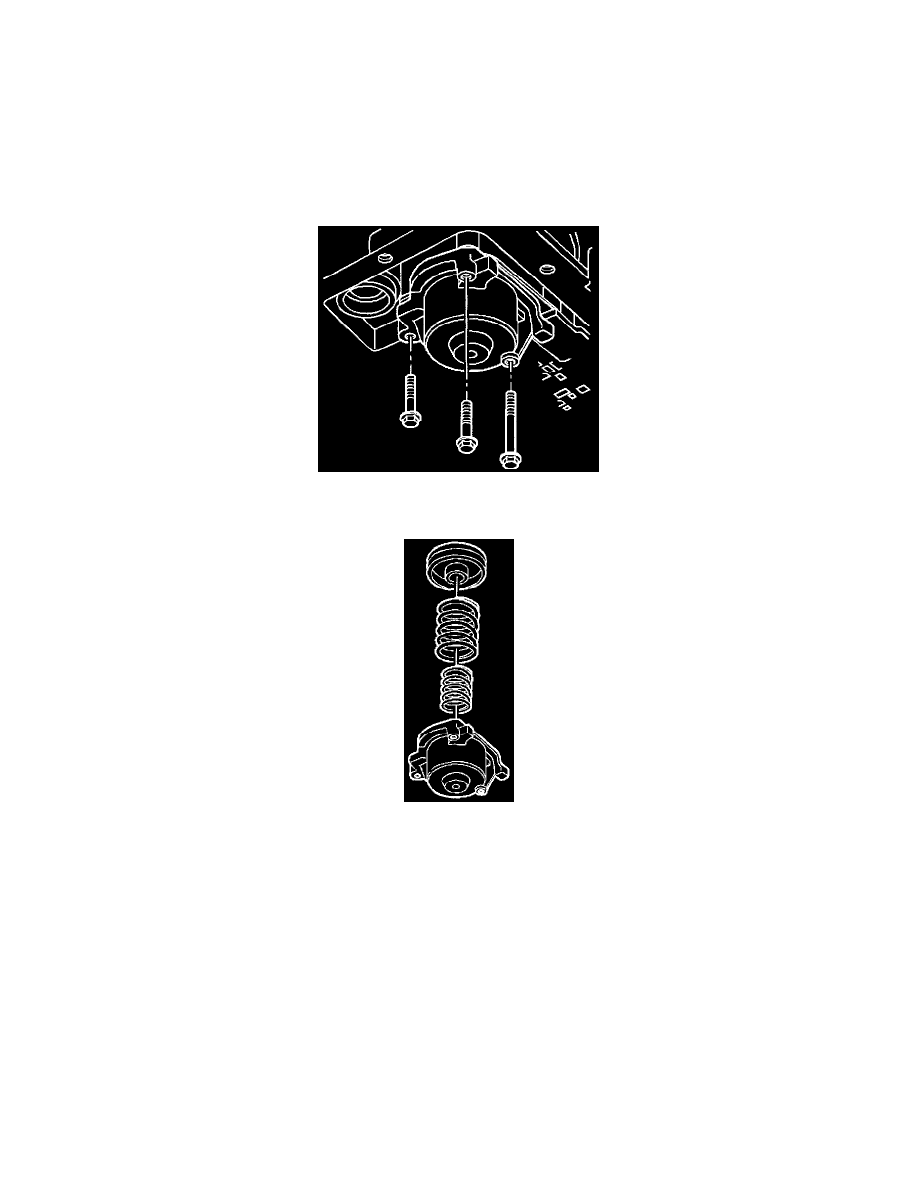

4. Remove the accumulator cover bolts.
5. Remove the 1-2 accumulator cover.
6. Remove the piston.
7. Remove the springs.
8. Remove the component electrical connectors.
