i-370 4WD L5-3.7L (2007)
Clutch Switch: Locations

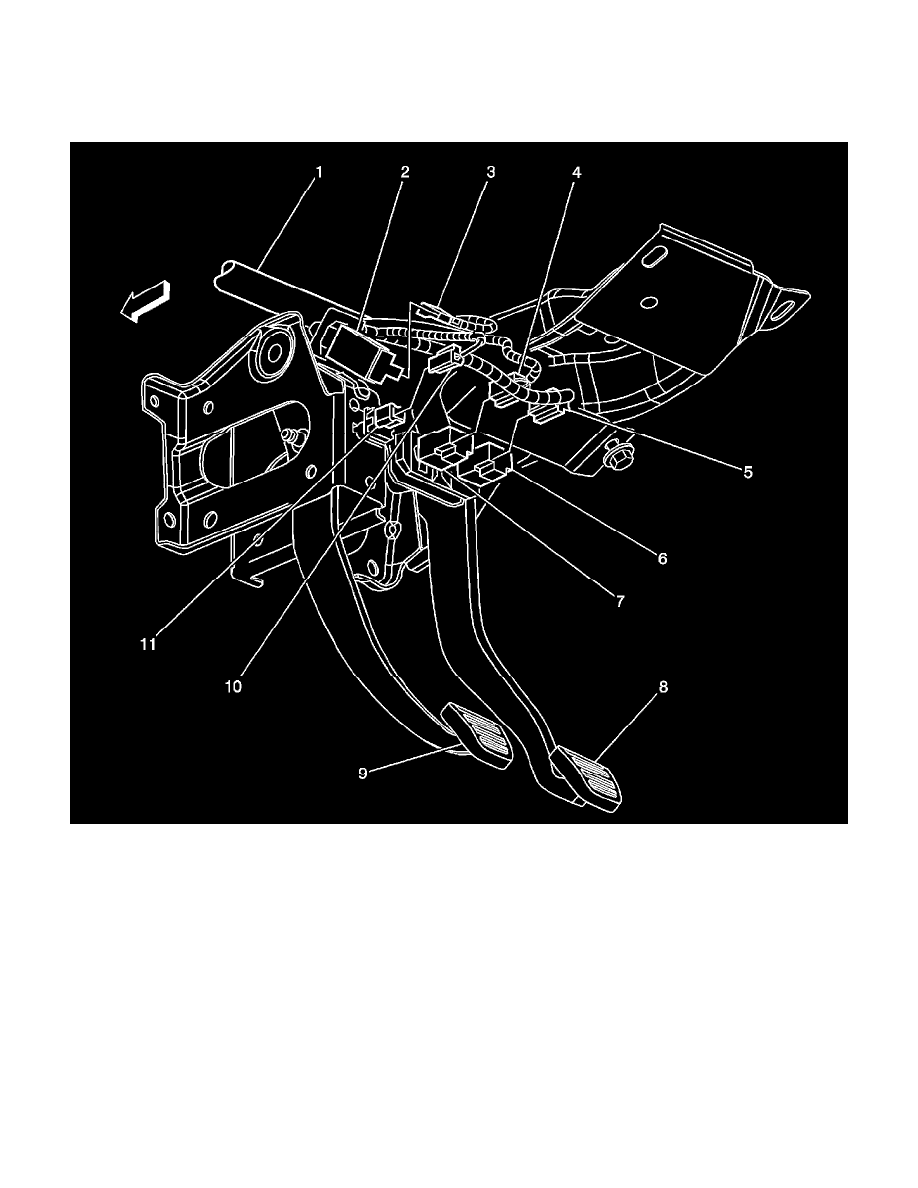

Cruise Control Component Views
Lower Left of the I/P
1 - Body Harness
2 - Clutch Switch (MA5)
3 - Clutch Switch Connector (MA5)
4 - TCC Brake/Cruise Release Switch Connector
5 - Stop Lamp Switch Connector
6 - Stop Lamp Switch
7 - TCC Brake/Cruise Release Switch
8 - Brake Pedal
9 - Clutch Pedal
10 - Clutch Start Switch Connector (MA5)
11 - Clutch Start Switch (MA5)
