Impulse L4-2254cc 2.3L SOHC (1988)
Drive Belt: Adjustments

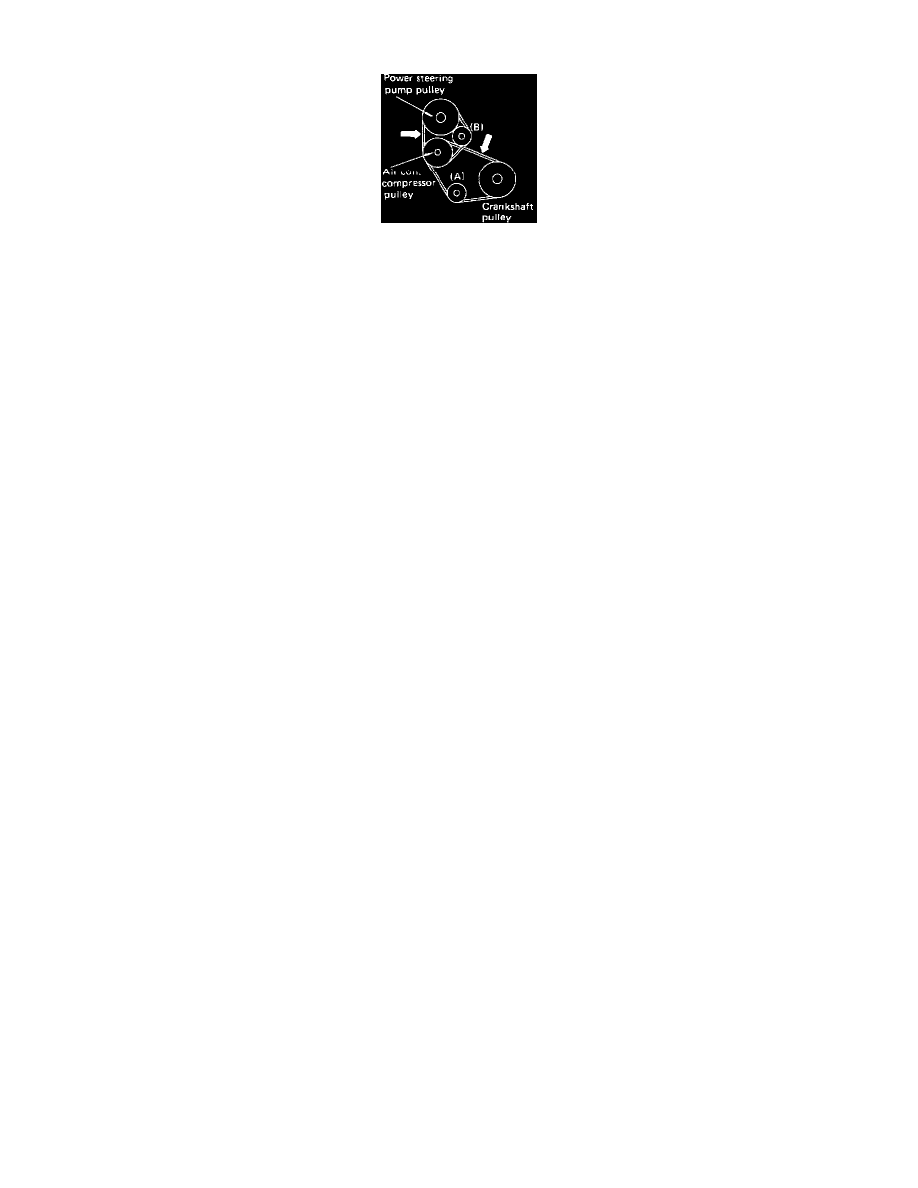

Belt Deflection
1.
Loosen center nut on idler pulley.
2.
Turn adjustment bolt until proper belt deflection is obtained. Tighten pulley nut.
STANDARD DEFLECTION: 0.4 in (10 mm)
