Wiper Relay: Locations

Make
Isuzu
Model
Impulse
Engine
L4-2254cc 2.3L SOHC
Year
1988
Section
Relays and Modules - Wiper and Washer Systems › Wiper Relay › Locations
Relays and ModulesLocations

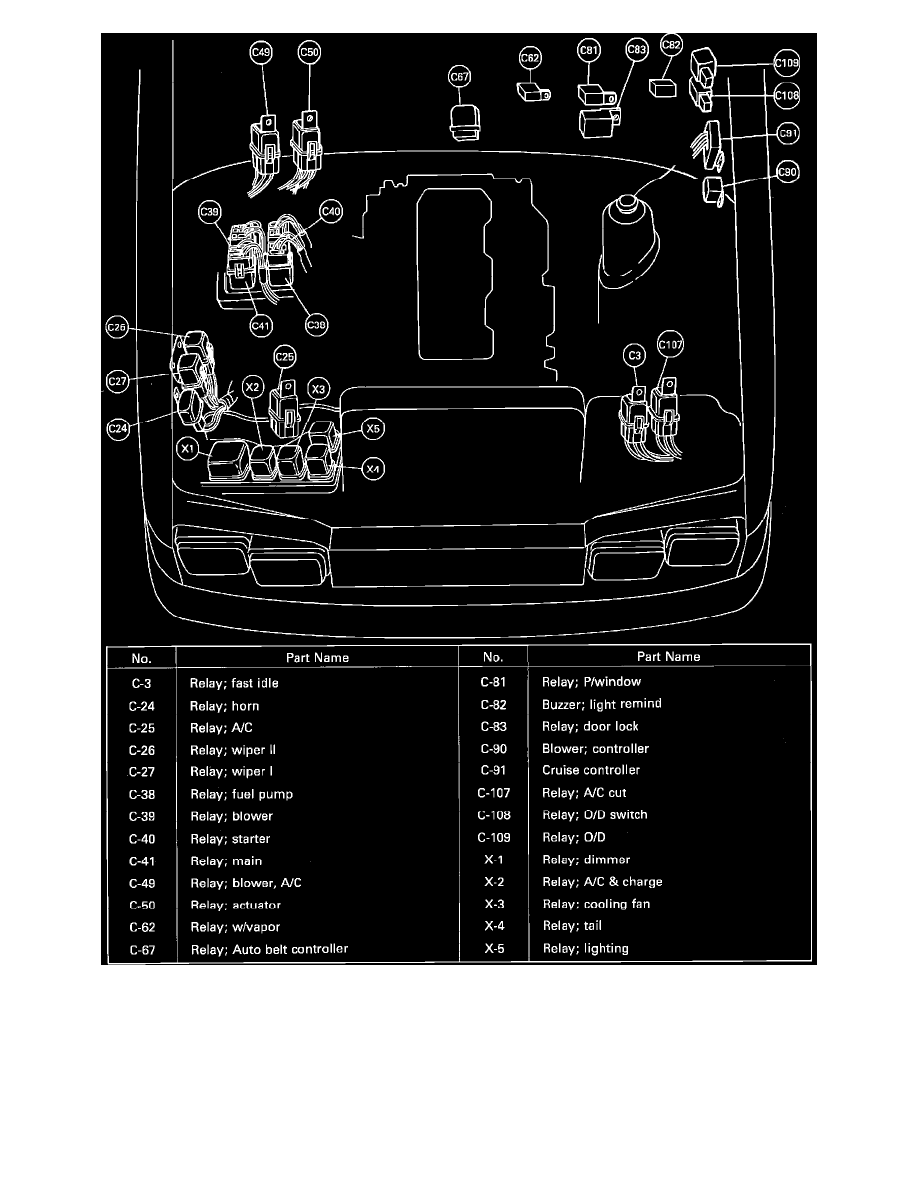

Wiper Relay: Locations – diagram from the Relays and Modules chapter of the Isuzu Impulse L4-2254cc 2.3L SOHC (1988) factory manual.

Diagram: Wiper Relay: Locations – Isuzu Impulse L4-2254cc 2.3L SOHC (1988)

Relay Location & Identification
