Air Door: Service and Repair

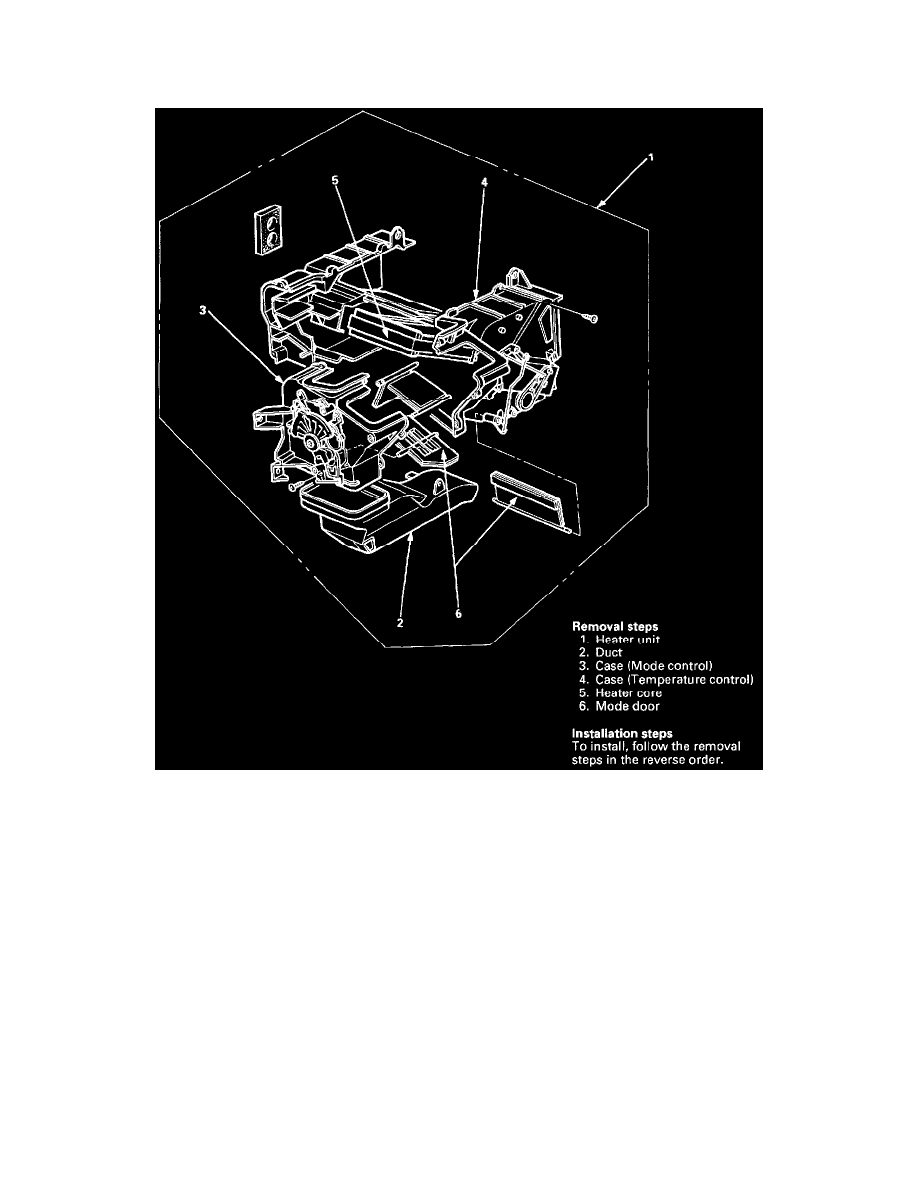

Heater Core and / or Mode Door
Removal
Preparation:
Battery ground cable
Drain engine coolant
Discharge and recover refrigerant (W/Air conditioning)
1. Heater unit
2. Duct
3. Case (Mode control)
-
Do not remove link unit at this step.
