Pickup 2WD V6-3137cc 3.1L (CPC) (1991)
Turn Signal Switch: Service and Repair
1. On models equipped with airbag system, refer to Technician Safety Information for system disarming and arming procedures.
2. Disconnect battery ground cable.

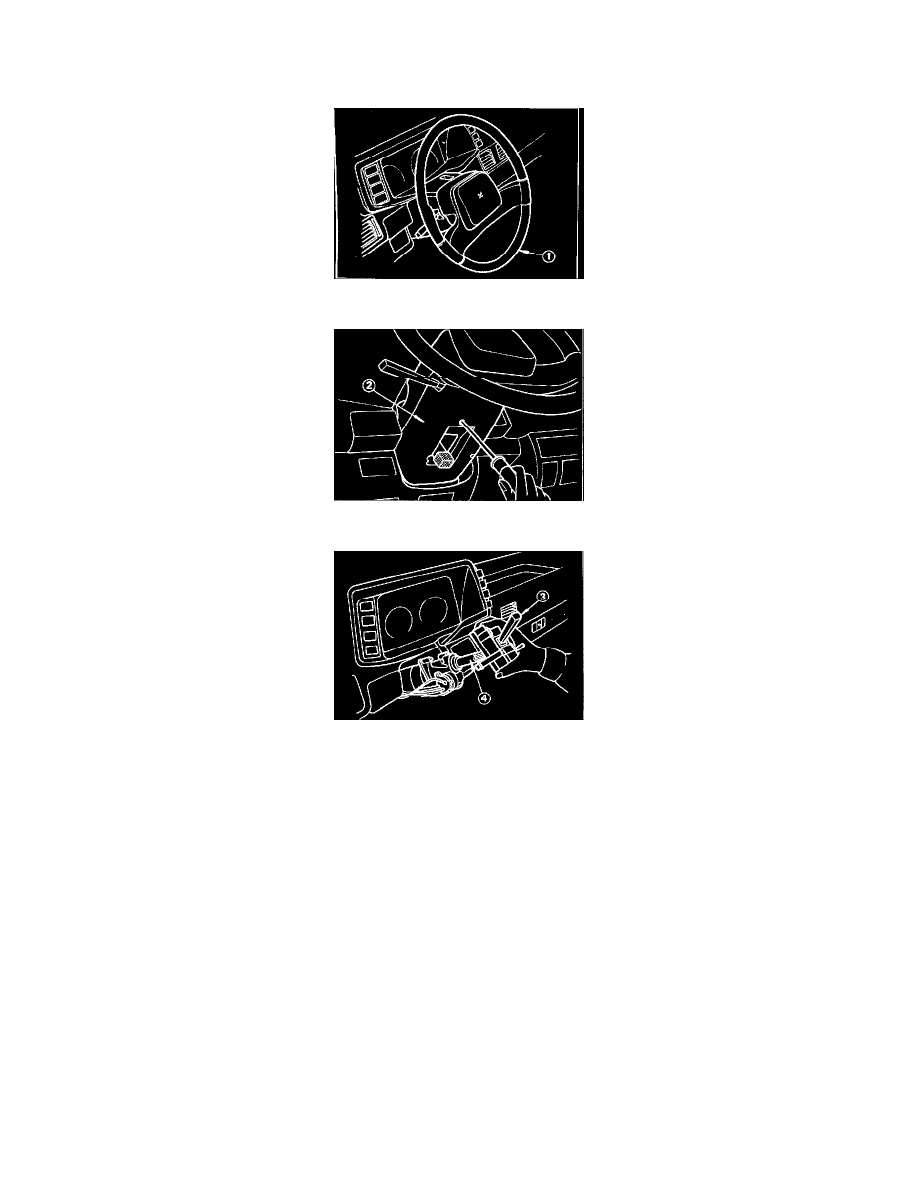

3. Remove steering wheel as outlined under Steering Wheel. See: Steering and Suspension/Steering/Steering Wheel
4. Remove screws securing upper and lower steering column covers. Disconnect electrical connectors.
5. Pull the switch (lever) (3) from the steering shaft (4).
6. Remove windshield wiper/washer switch and/or combination turn signal, headlight dimmer and hazard warning switch by removing retaining
screws.
7. Remove lock cylinder housing by removing snap ring and washer, followed by the attaching bolts.
8. Reverse procedure to install.
9. On models equipped with airbag system, refer to Technician Safety Information for system disarming and arming procedures.
