Diagram Information and Instructions|Page 3484 > < Temperature Sensor (Gauge)|Locations

Rodeo (4WD) L4-2559cc 2.6L SOHC (4ZE1) (1991)

  • Lighting and Horns
  • Backup Lamp
  • Component Information
  • Diagrams
  • Diagram Information and Instructions

Page 1
background image

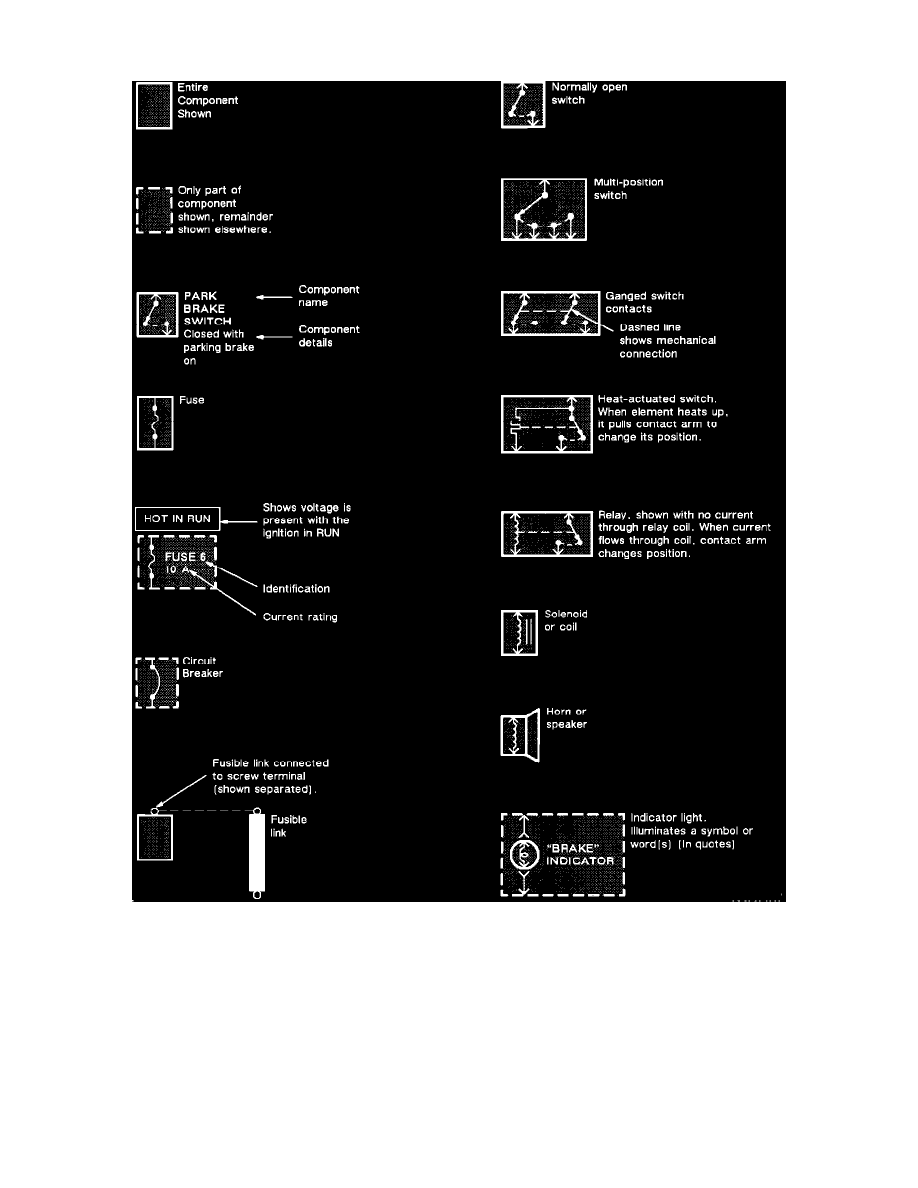

Backup Lamp: Diagram Information and Instructions

Symbol Identification

  • Lighting and Horns
  • Backup Lamp
  • Component Information
  • Diagrams
  • Diagram Information and Instructions

Diagram Information and Instructions|Page 3484 > < Temperature Sensor (Gauge)|Locations
