Rodeo 2WD V6-3.2L (2003)

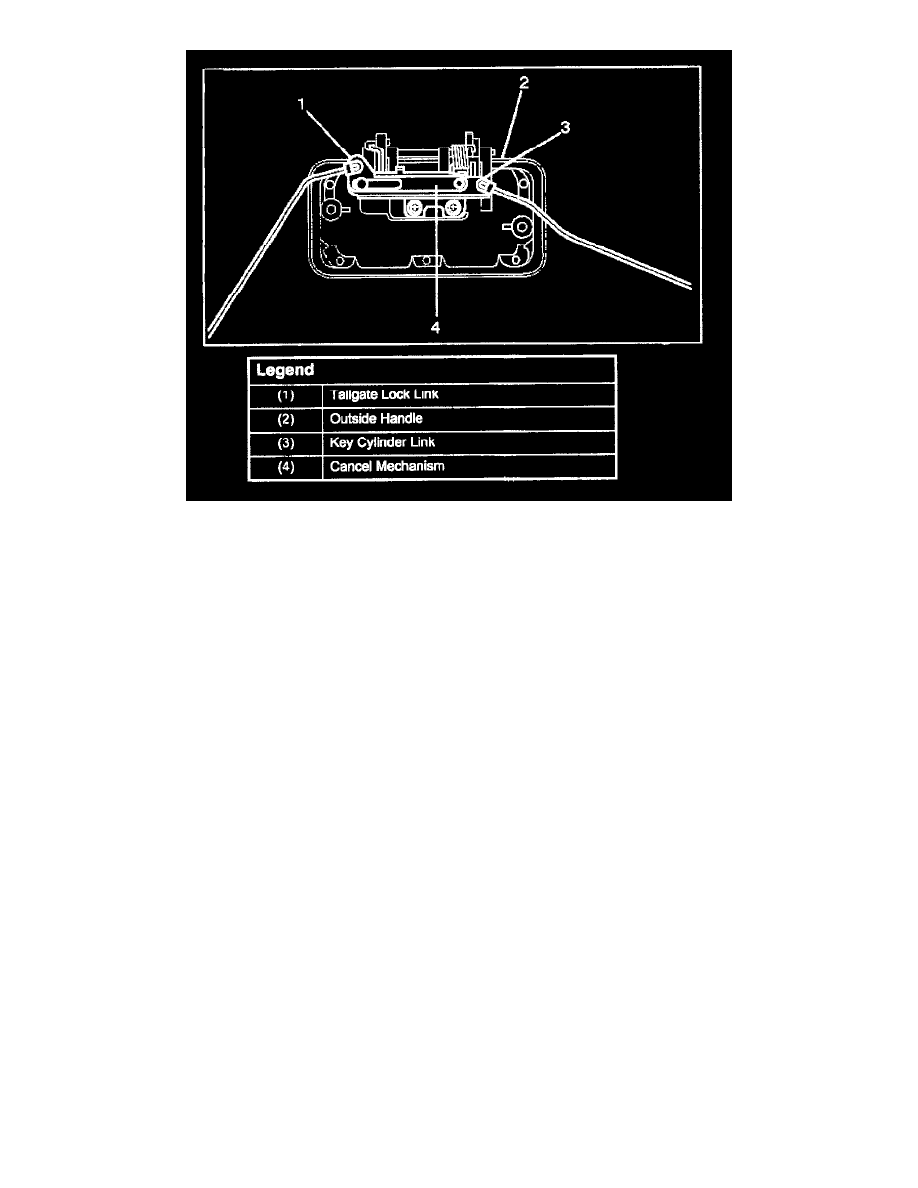

1. When setting up links, pay attention to the position and direction of the links.
2. Apply chassis grease to the lock assembly and striker moving surface.
3. Check that the tailgate lock operates correctly after installing it.
4. Tighten the tailgate lock assembly fixing bolts to the specified torque.
Torque: 7 N.m (61 lb in)
5. Tighten the hatchgate lock assembly fixing bolts to the specified torque.
Torque: 9 N.m (78 lb in)
