Rodeo LS 4WD V6-3.2L (1998)

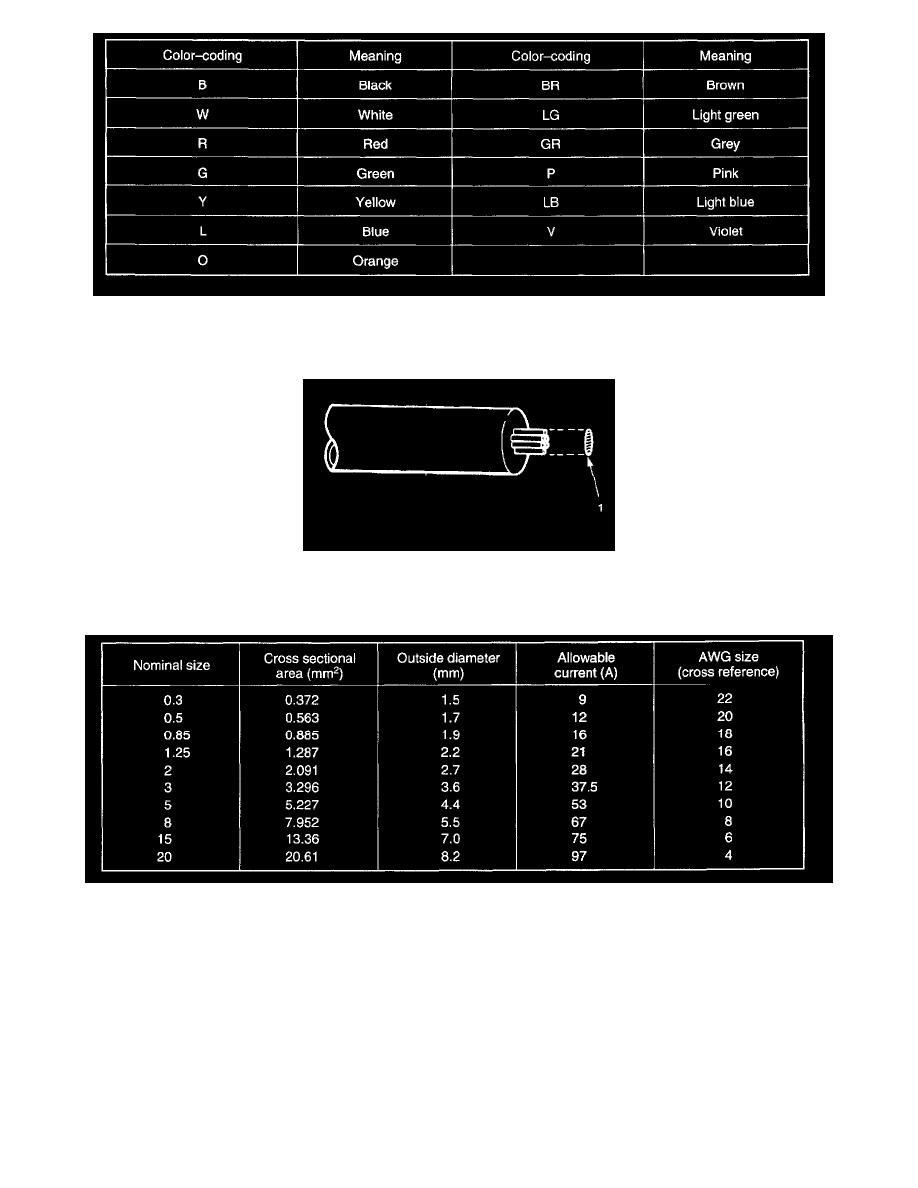

Abbreviations are used to indicate wire color within a circuit diagram.
Wiring - Wire Size
The size of wire used in a circuit is determined by the amount of current (amperage), the length of the circuit, and the voltage drop allowed The
following wire size and load capacity, shown below, are specified by AWG (American Wire Gauge) (Nominal size means approximate cross sectional
area (1).)
Wiring - Wire Size Table
Reading the Circuit Diagram
Each system has its own parts location illustration and circuit diagram.
And harness connector faces used in the circuit diagram are shown separately.
Parts Location
