Rodeo LSE 4WD V6-3.2L (2000)
Valve Cover: Service and Repair
Cylinder Head Cover LH
Cylinder Head Cover LH
Removal
1. Disconnect battery ground cable.

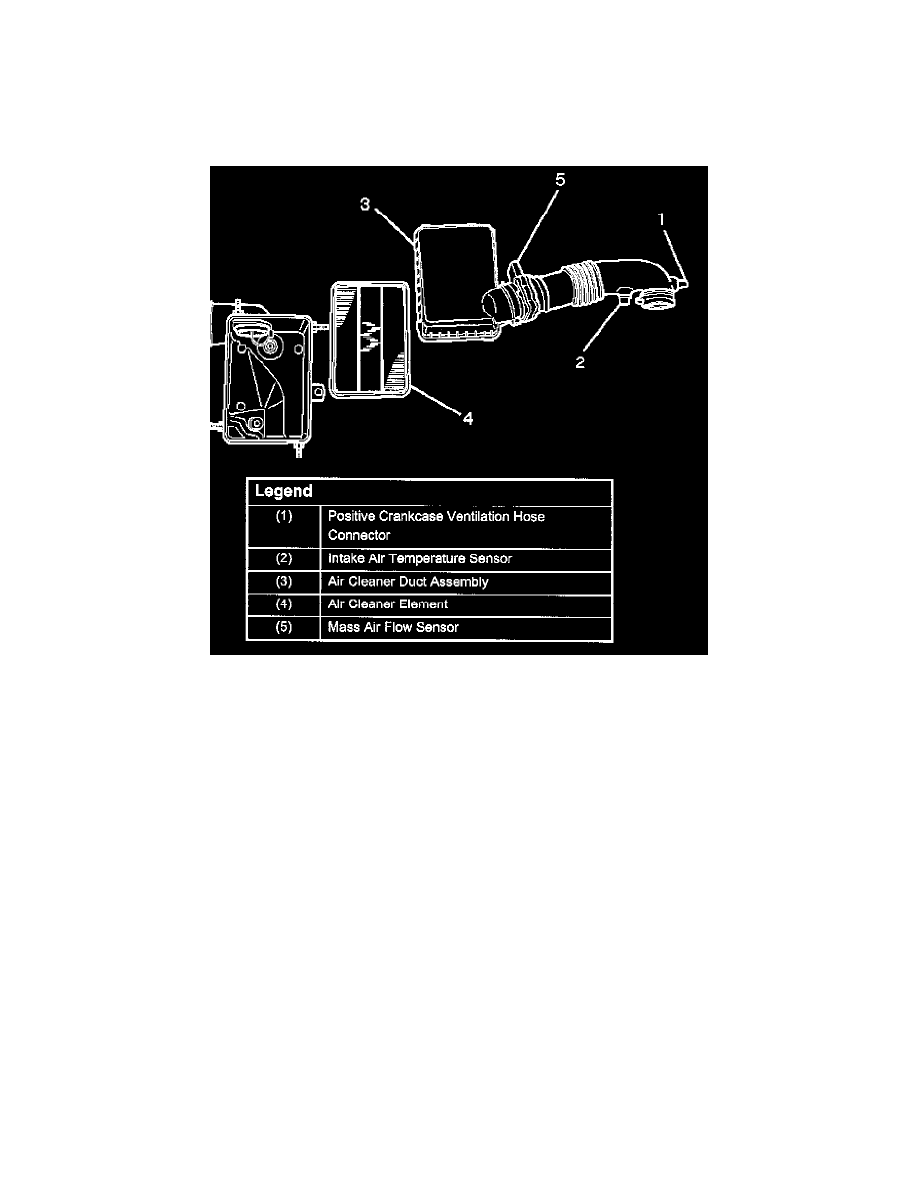

2. Remove air cleaner duct assembly.
3. Disconnect positive crankcase ventilation hose.
4. Remove camshaft angle sensor connector.
5. Remove ground cable fixing bolt on cylinder head cover.
6. Ignition coil connector and ignition coil.
^
Disconnect the three connectors from the ignition coils.
^
Remove harness bracket bolt on cylinder head cover.
^
Remove fixing bolts on ignition coils.
