Hazard Warning Lamps > < Diagram Information and Instructions|Page 4497

Trooper (2 Door) V6-3165cc 3.2L SOHC (6VD1) (1993)

  • Lighting and Horns
  • Fog/Driving Lamp
  • Fog/Driving Lamp Relay
  • Component Information
  • Locations

Page 1
background image

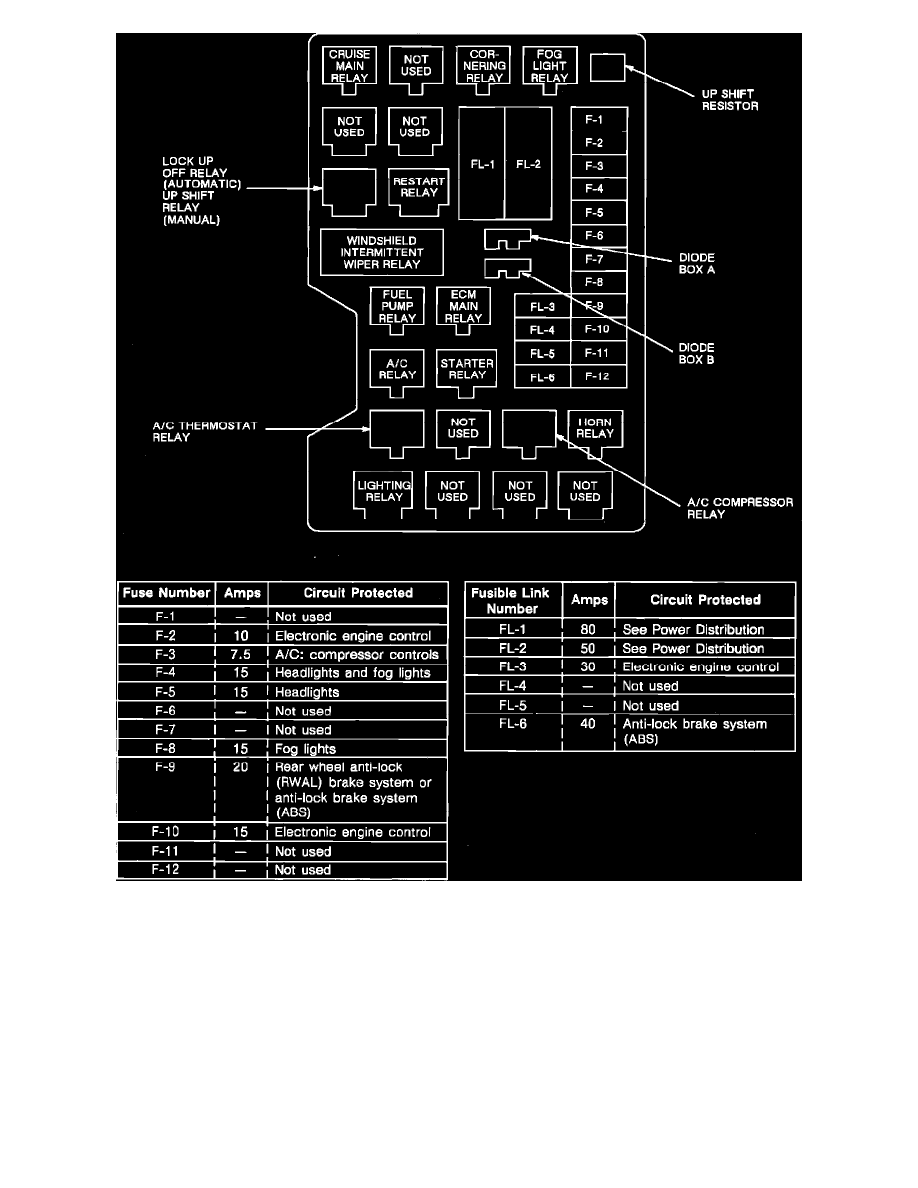

Fuse/Relay Panel

  • Lighting and Horns
  • Fog/Driving Lamp
  • Fog/Driving Lamp Relay
  • Component Information
  • Locations

Hazard Warning Lamps > < Diagram Information and Instructions|Page 4497
