Trooper (2 Door) V6-3165cc 3.2L SOHC (6VD1) (1993)
/v6-3165cc_3.2l_sohc_(6vd1)/Page-1305001.png)

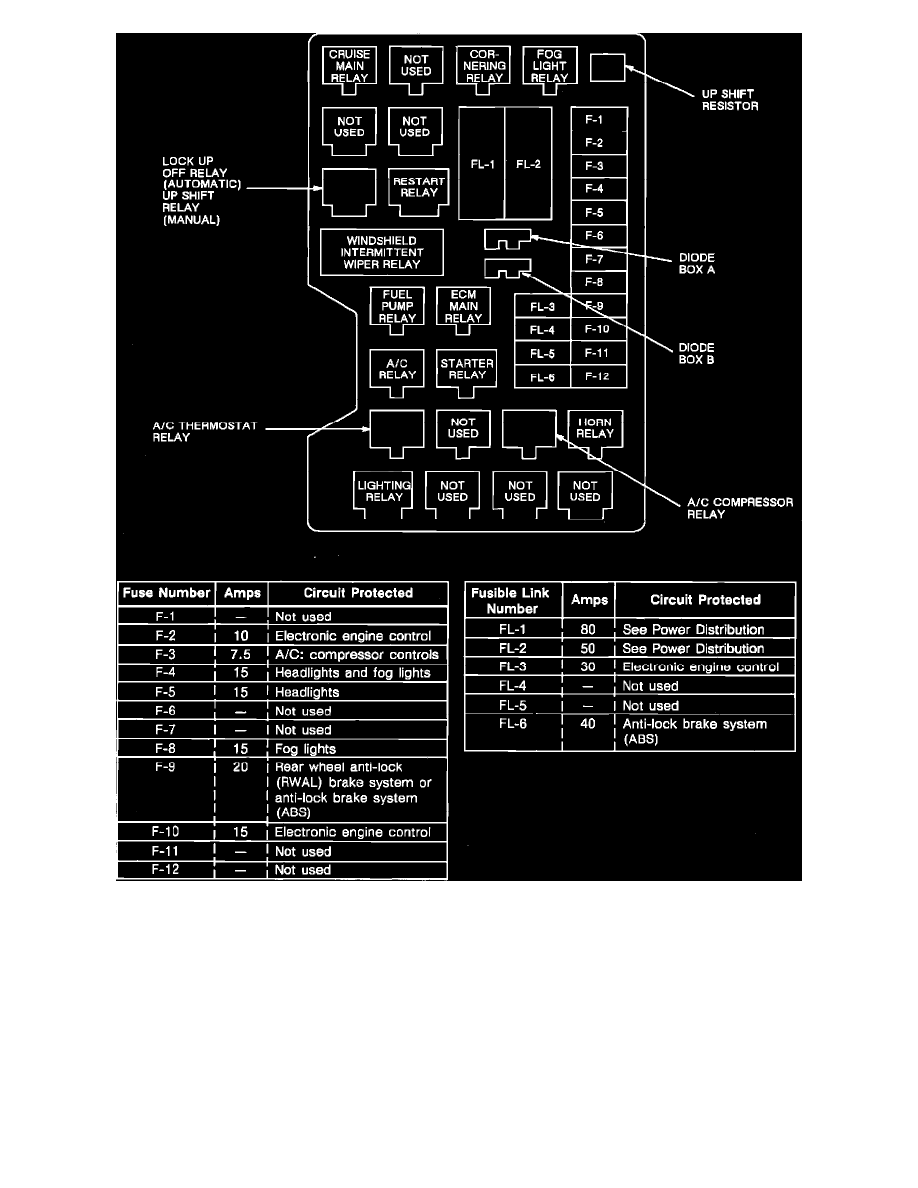

Fuse/Relay Panel
Isuzu Workshop Service and Repair Manuals
License Plate Lamp >
< Diagram Information and Instructions|Page 4538
Page 1
Fuse/Relay Panel
