Page 2

background image

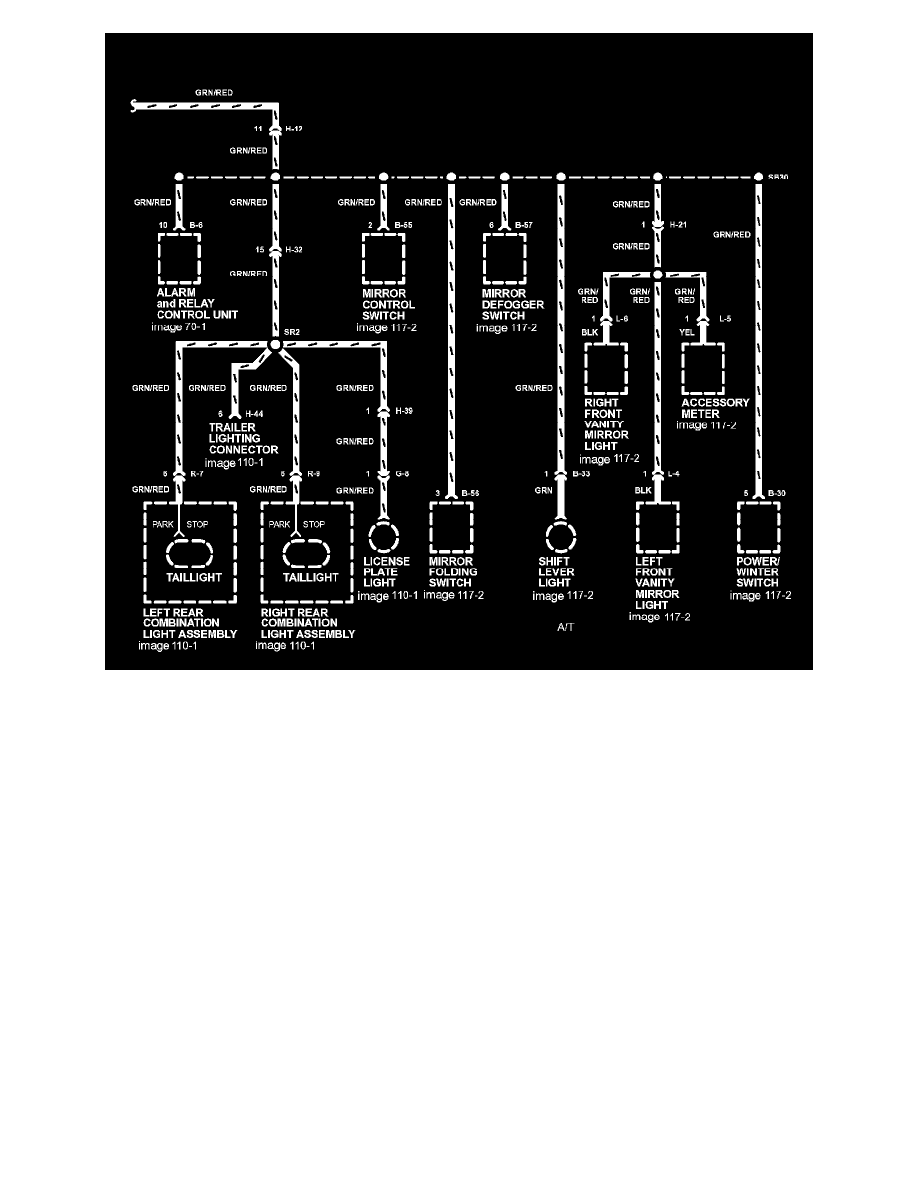

Lighting Switch Details Image 12-1

Lighting and Horns
Sensors and Switches - Lighting and Horns
Combination Switch / Diagrams / Diagram Information and Instructions
Page 7102
