X-Type (X400) V6-3.0L (2002)
/v6-3.0l/Page-1580003.png)

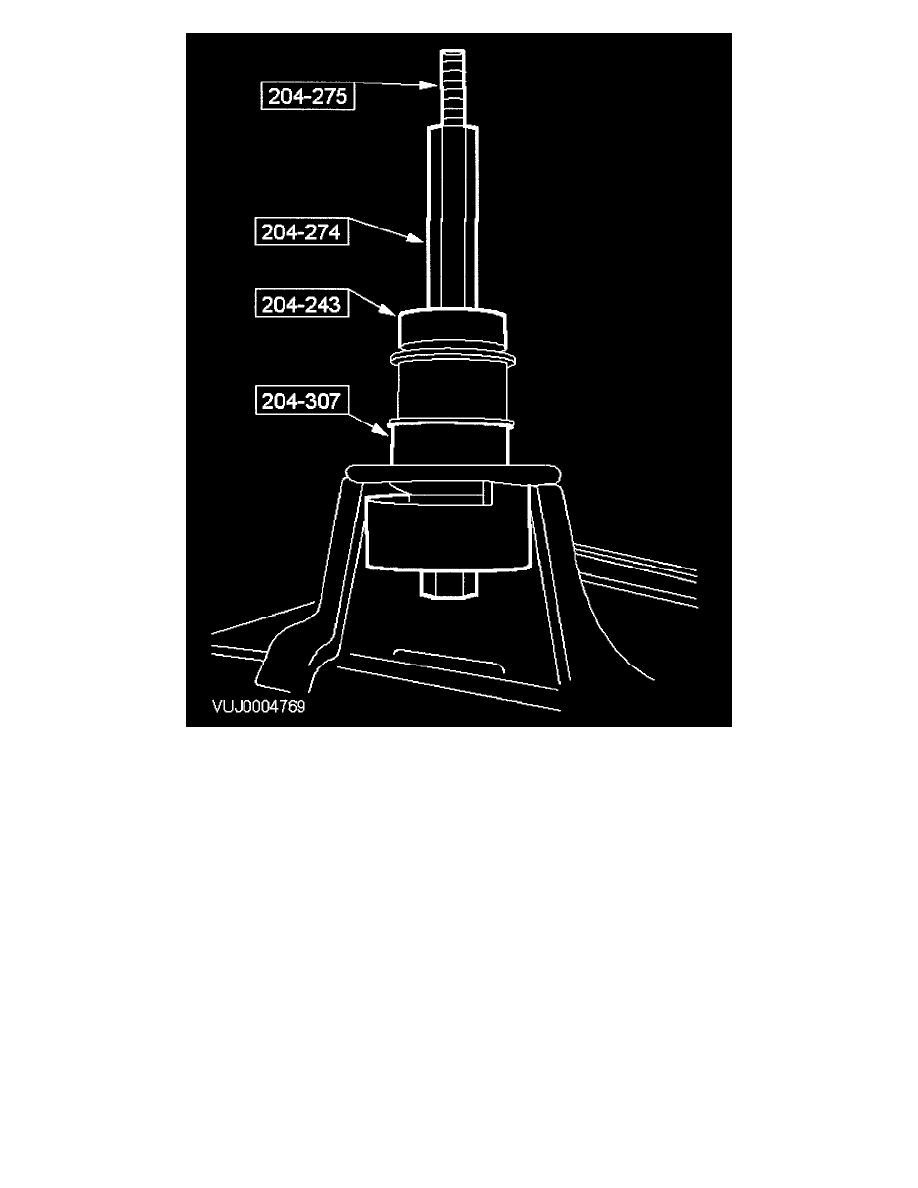

3. Using the special tools, fully engage the bush into the subframe.
-
Remove the clamps from the subframe.
-
Remove the support from the mounting bush.
-
Using the special tools, fully engage the bush into the subframe.
4. Install the front subframe.
Specification
Bush installation lubrication
Shell gravex oil 973
