X-Type (X400) V6-3.0L (2002)
/v6-3.0l/Page-1590002.png)

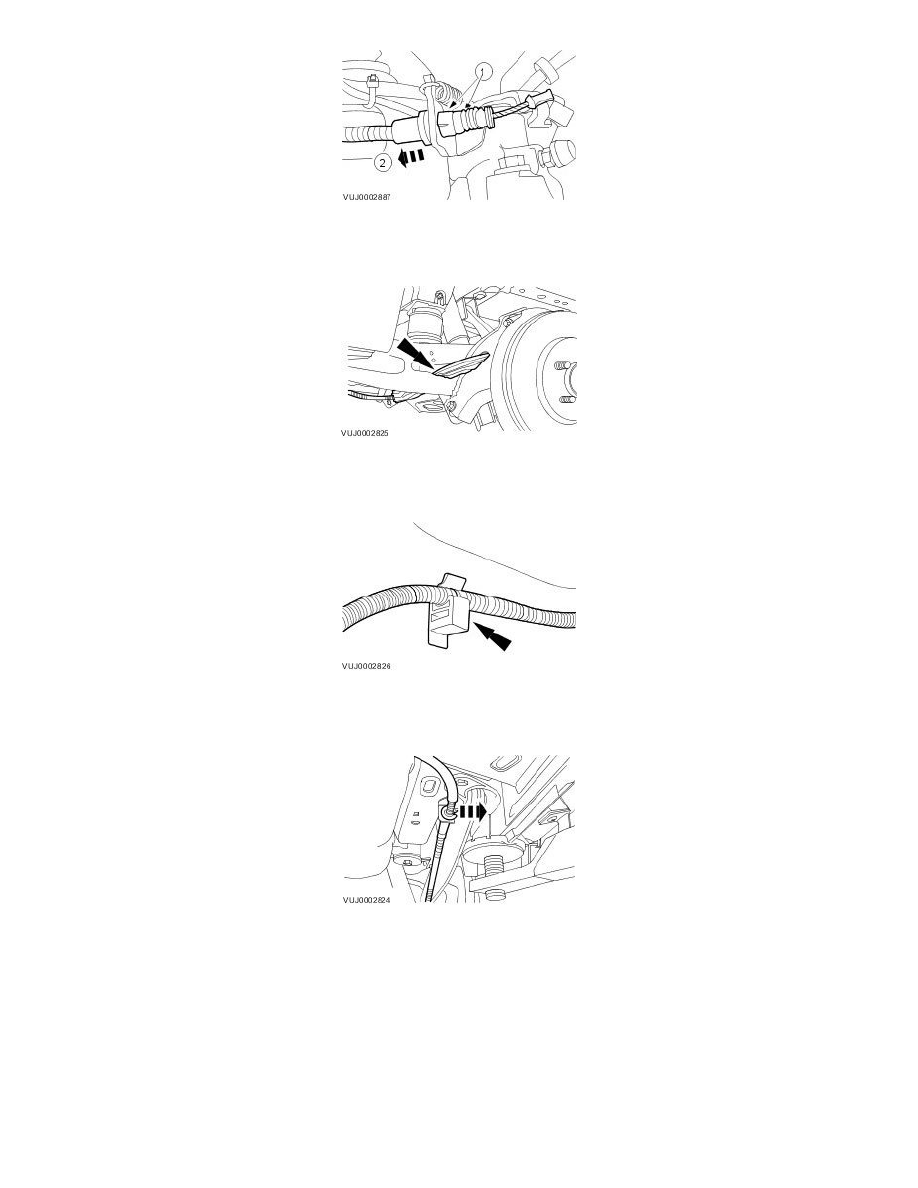

7. NOTE: Left-hand shown, right-hand similar.
Detach the parking brake cables and conduits from the wheel hub carriers.
8. NOTE: Left-hand shown, right-hand similar.
Detach the parking brake cables and conduits.
9. NOTE: Right-hand shown, left-hand similar.
Detach the parking brake cables and conduits.
10. NOTE:
-
Left-hand shown, right-hand similar.
-
2.5L and 3.0L shown, 2.0L similar.
Detach the brake calipers and secure to one side.
-
Remove and discard the brake caliper retaining bolts.
