Vehicles with 2.5L or 3.0L engine

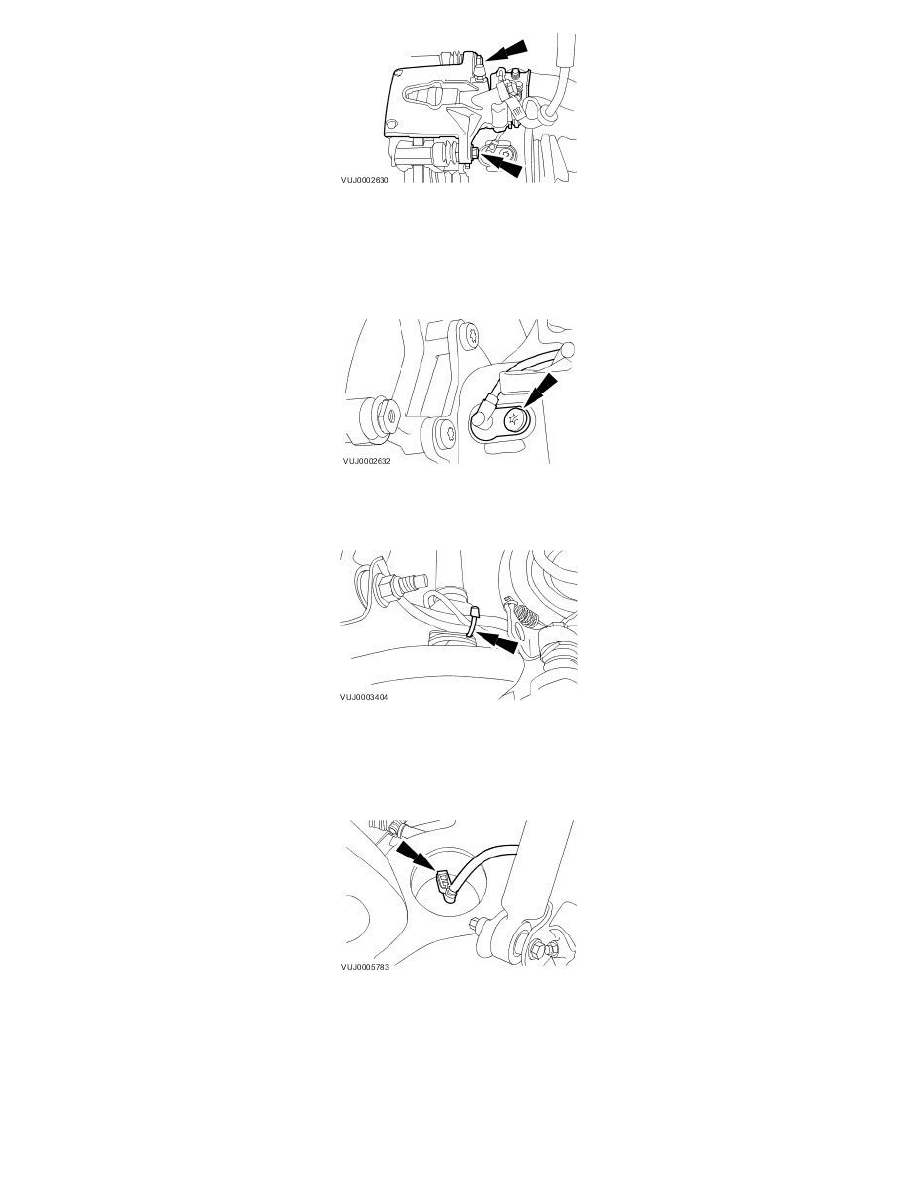

11. NOTE:  Left-hand shown, right-hand similar.

Detach the Anti-lock brake system (ABS) wheel speed sensors.
-

Remove the ABS wheel speed sensor retaining bolts.

12. NOTE:  Left-hand shown, right-hand similar.

Remove the ABS wheel speed sensor wiring harness retaining straps.

Vehicles with 2.0L engine

13. NOTE:  Left-hand shown, right-hand similar.

Disconnect the electrical connectors.

All vehicles

14. NOTE:

-

Left-hand shown, right-hand similar.

-

2.5L and 3.0L shown, 2.0L similar.

Detach the ABS wheel speed sensor wiring harness.
