Page 5
background image

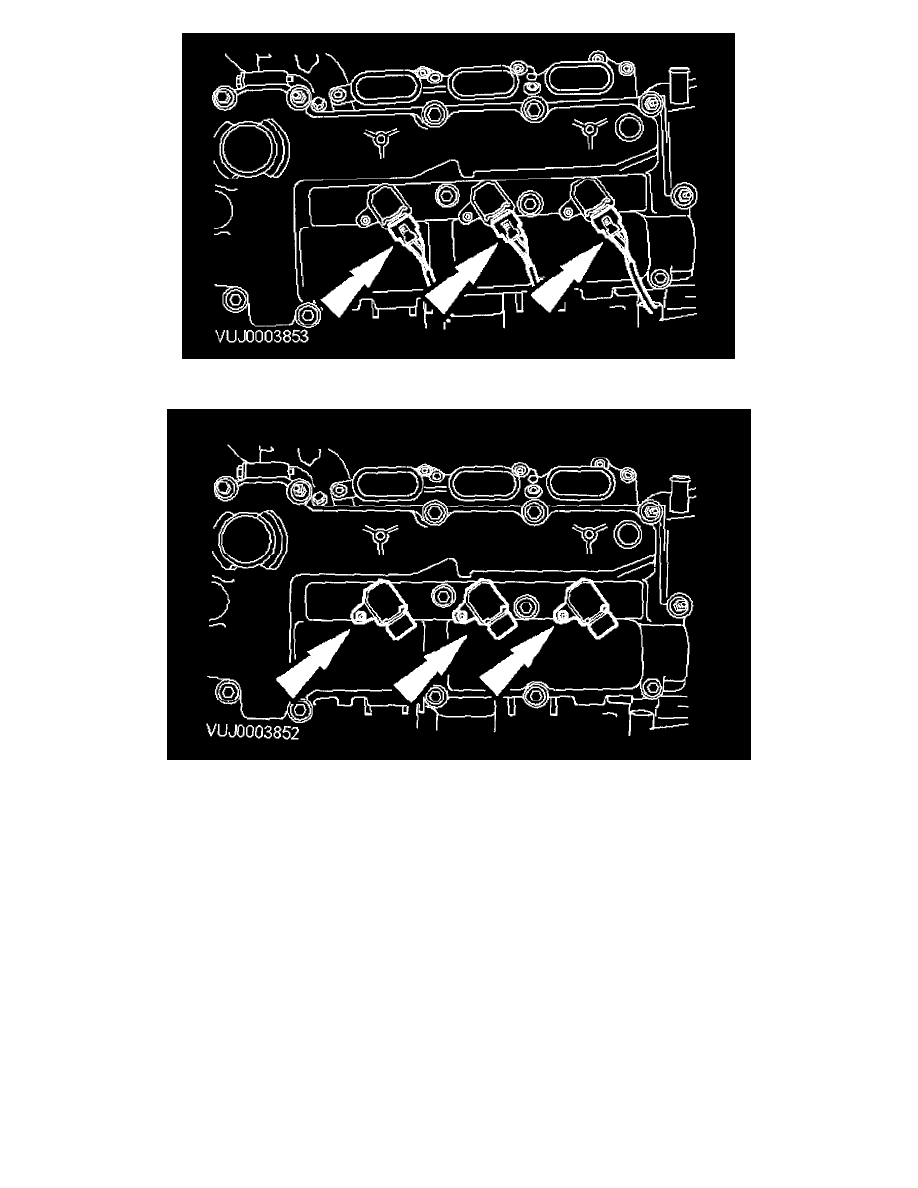

11. Disconnect the left-hand ignition coils electrical connectors.

12. Remove the left-hand ignition coils.
