X-Type (X400) V6-3.0L (2002)

Page 9
background image

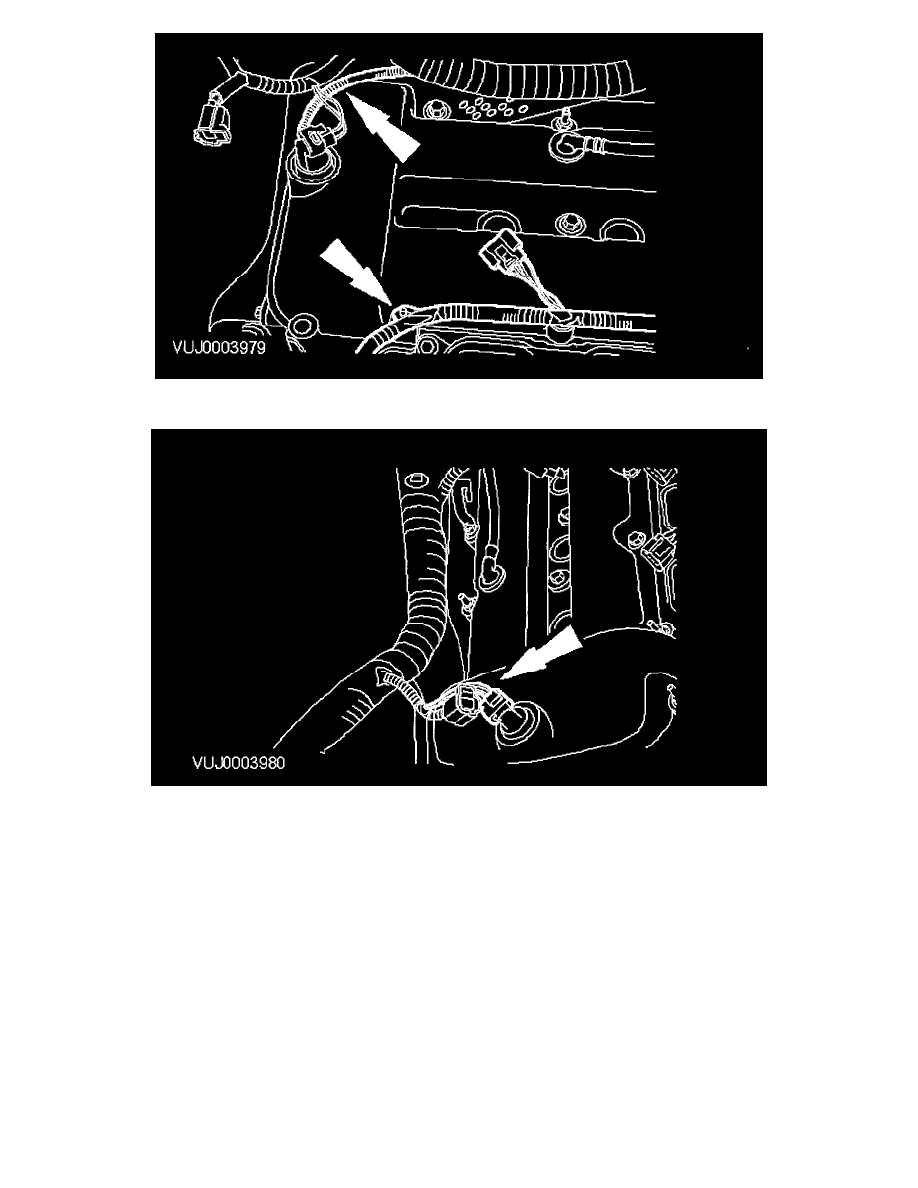

20. Detach the wiring harness.

21. Disconnect and reposition the variable camshaft timing (VCT) solenoid electrical connector.
