Timing Cover|Removal|Page 1390 > < Timing Cover|Removal|Page 1388

X-Type (X400) V6-3.0L (2002)

Page 11
background image

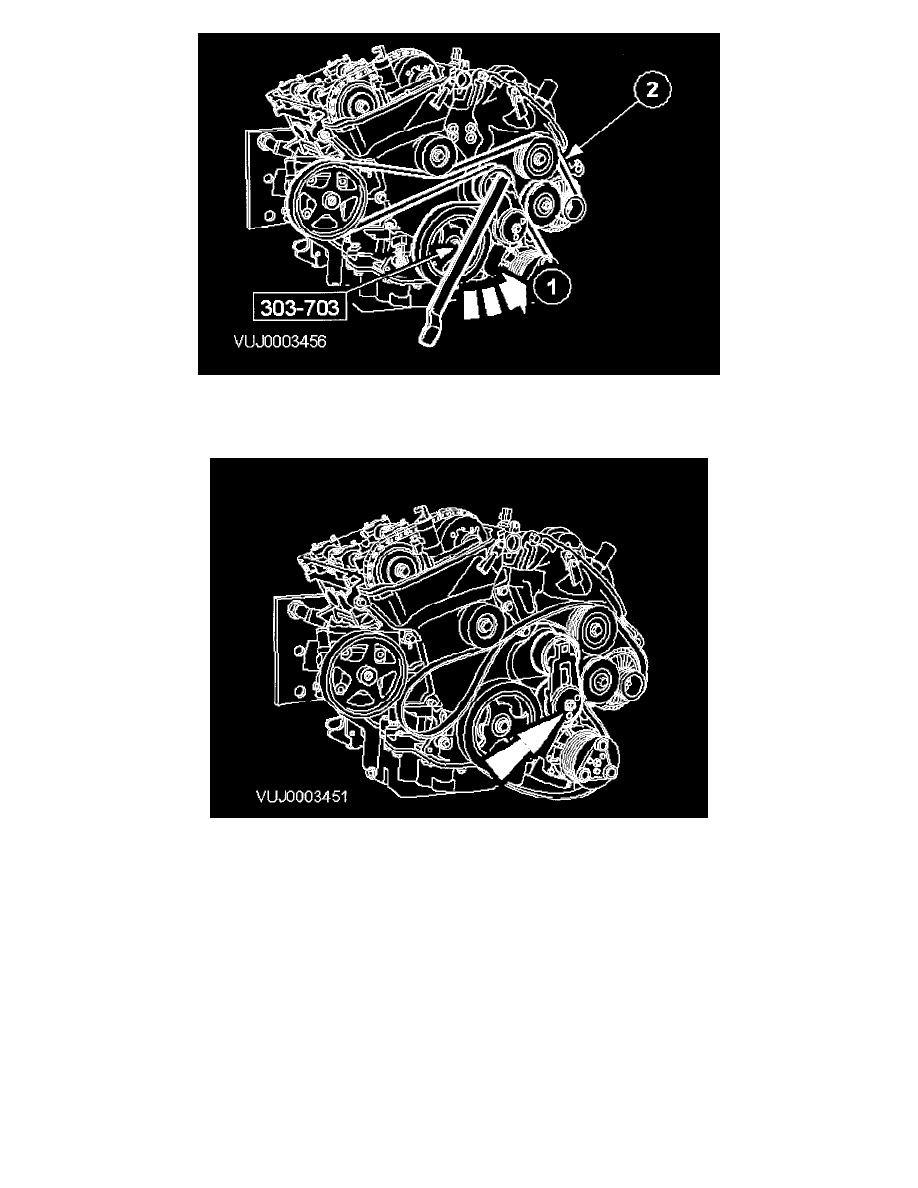

25. Detach the accessory drivebelt.

1 Using the special tool, rotate the belt tensioner counter-clockwise.
2 Detach the accessory drivebelt.

26. Remove the accessory drive belt tensioner.
