X-Type (X400) V6-3.0L (2002)

Page 5
background image

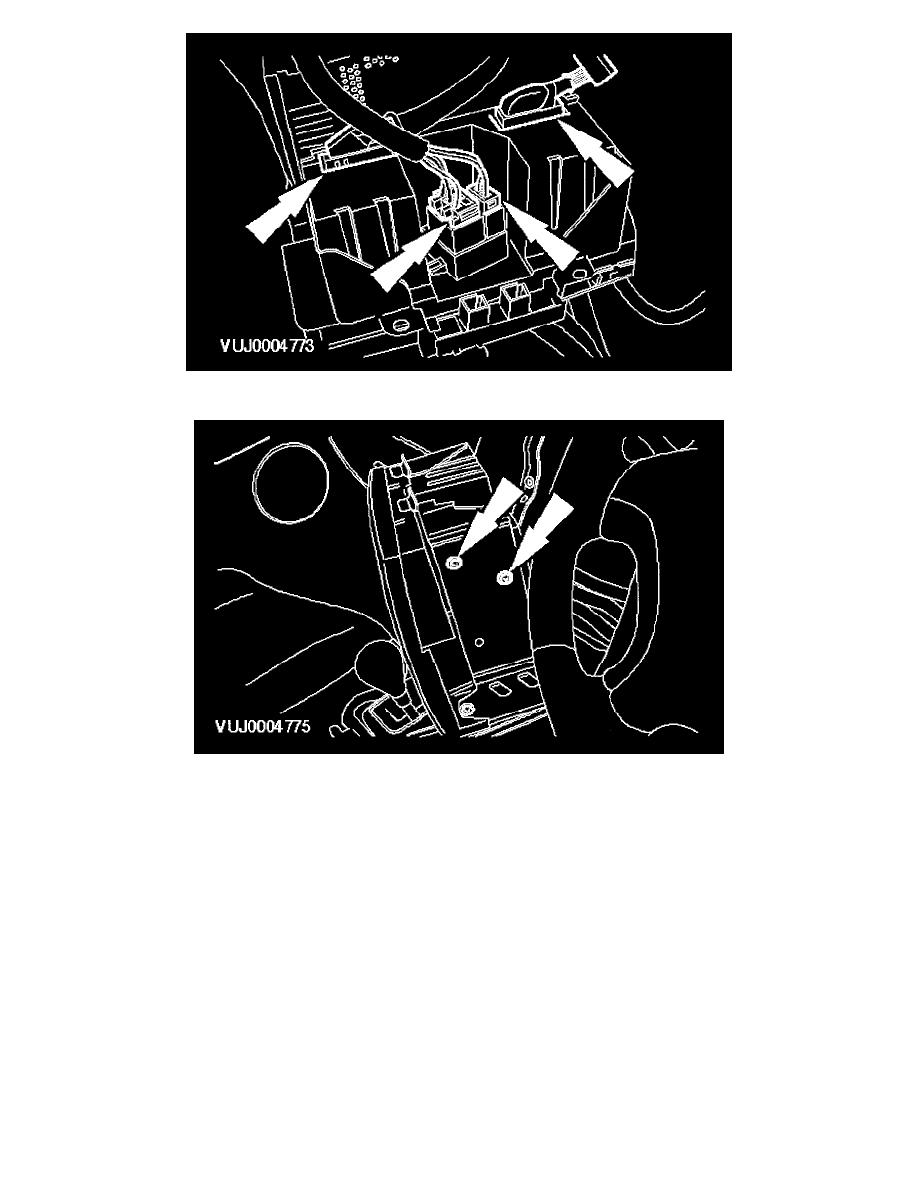

11. Disconnect the climate control assembly electrical connectors.

12. Remove the climate control assembly retaining screws.
