X-Type (X400) V6-3.0L (2002)
/v6-3.0l/Page-1284006.png)

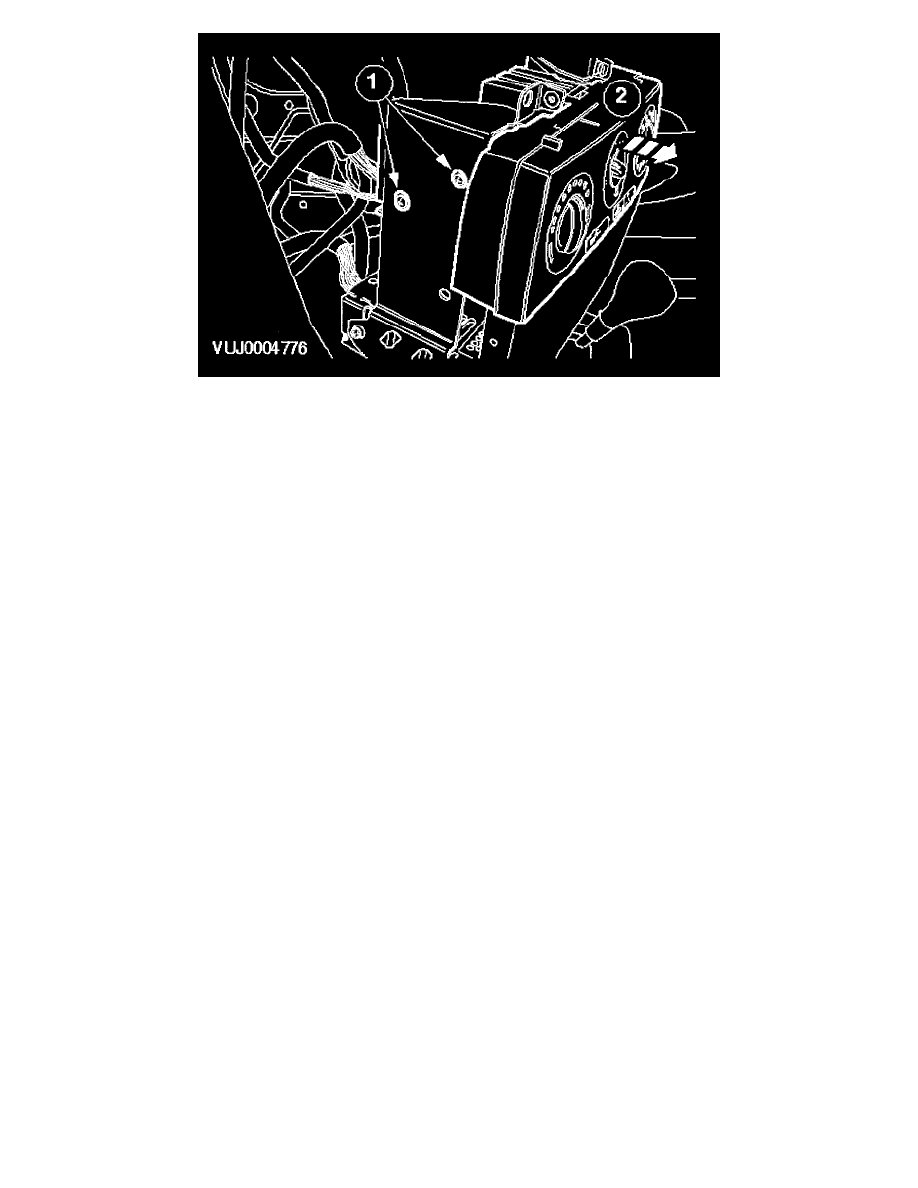

13. Remove the climate control assembly.
1. Remove the retaining screws.
2. Remove the climate control assembly.
Installation
1. NOTE: Make sure the climate control assembly is correctly located into the audio unit.
To install, reverse the removal procedure.
