X-Type (X400) V6-3.0L (2002)
/v6-3.0l/Page-1288009.png)

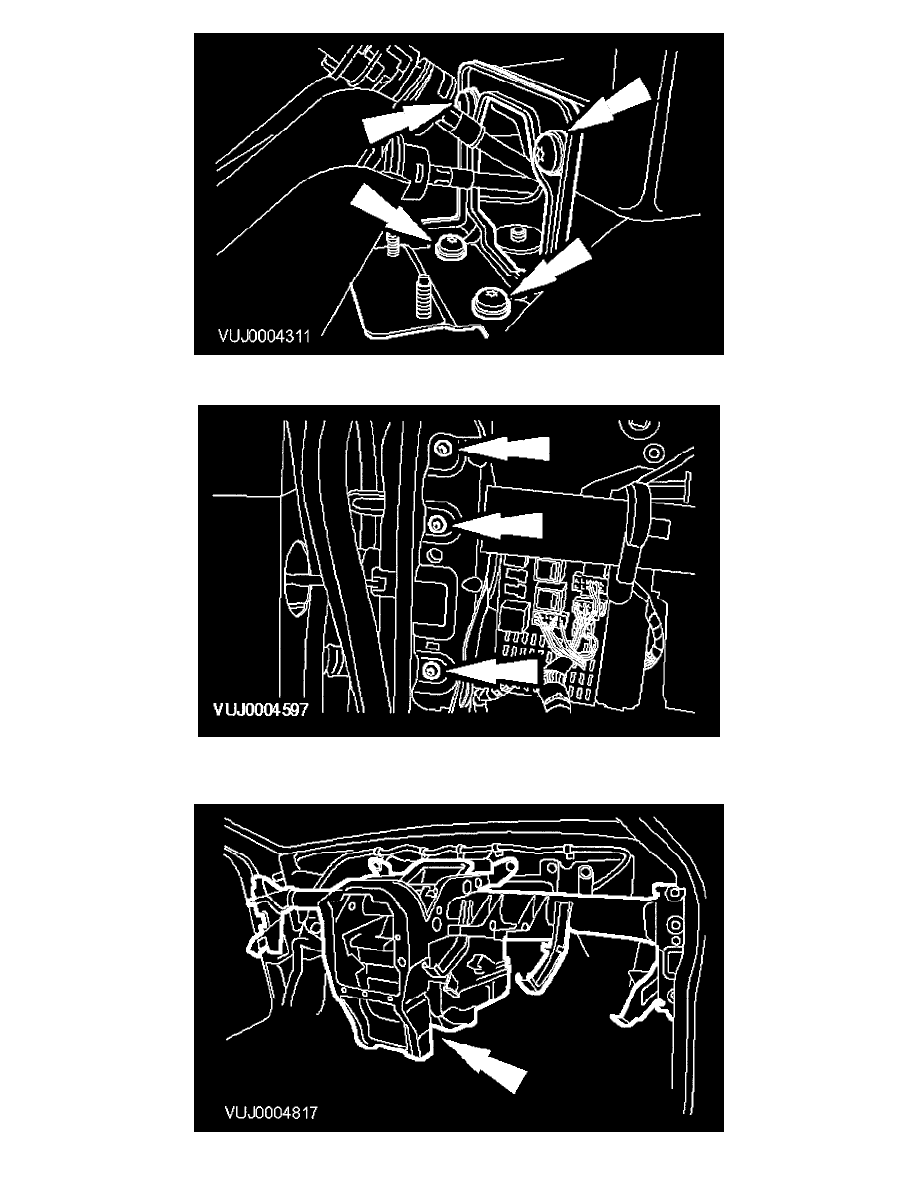

24. Detach the center of the in vehicle cross beam.
25. Remove the in vehicle cross beam retaining bolts.
-
Left-hand side shown, right-hand side similar.
