X-Type (X400) V6-3.0L (2002)
/v6-3.0l/Page-1289001.png)
Evaporator Case: Service and Repair
Disassembly and Reassembly
Disassembly
1. Remove the evaporator core housing. See: Removal and Installation

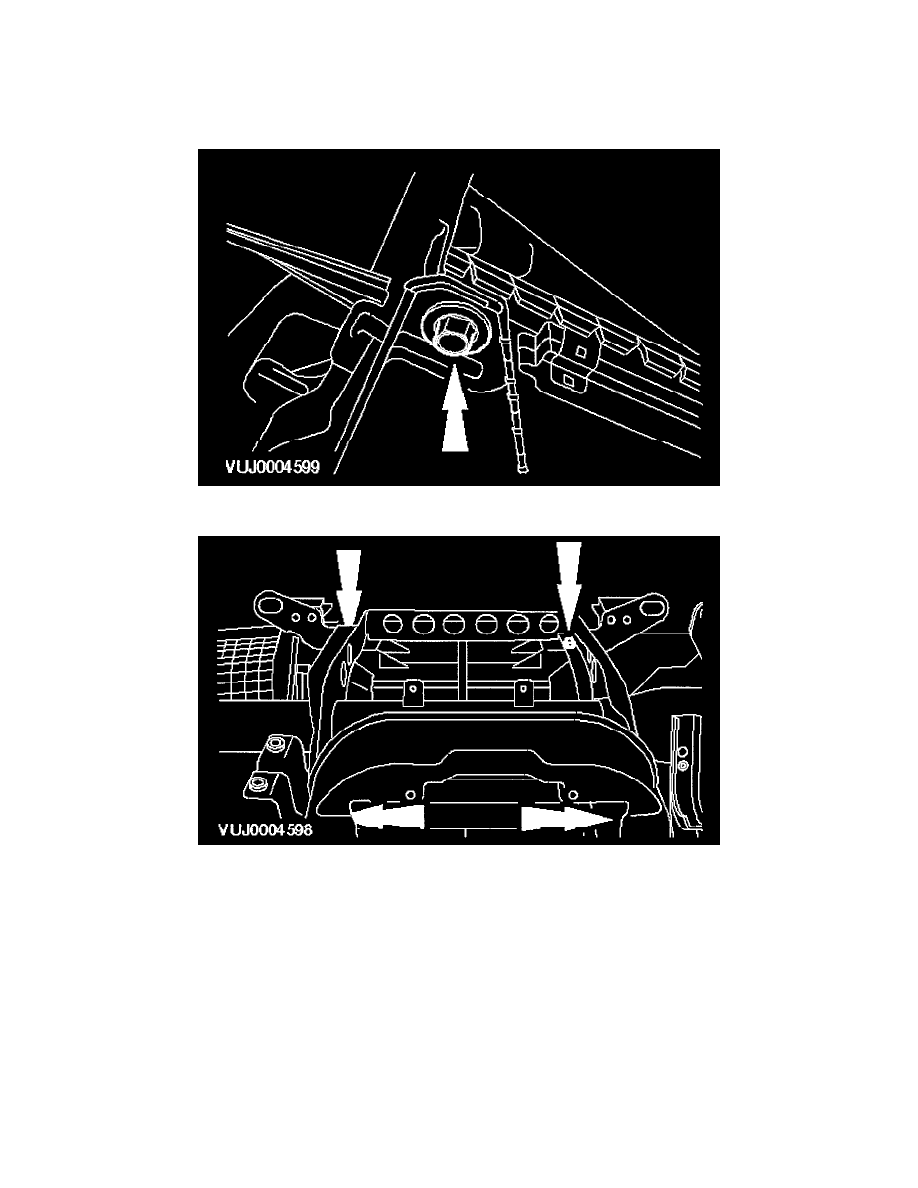

2. Detach the blower motor from the in vehicle cross beam.
3. Remove the evaporator core housing from the in vehicle cross beam.
