Evaporator Core|Description and Operation|Page 5536 > < Evaporator Core|Description and Operation|Page 5534

X-Type (X400) V6-3.0L (2002)

Page 2
background image

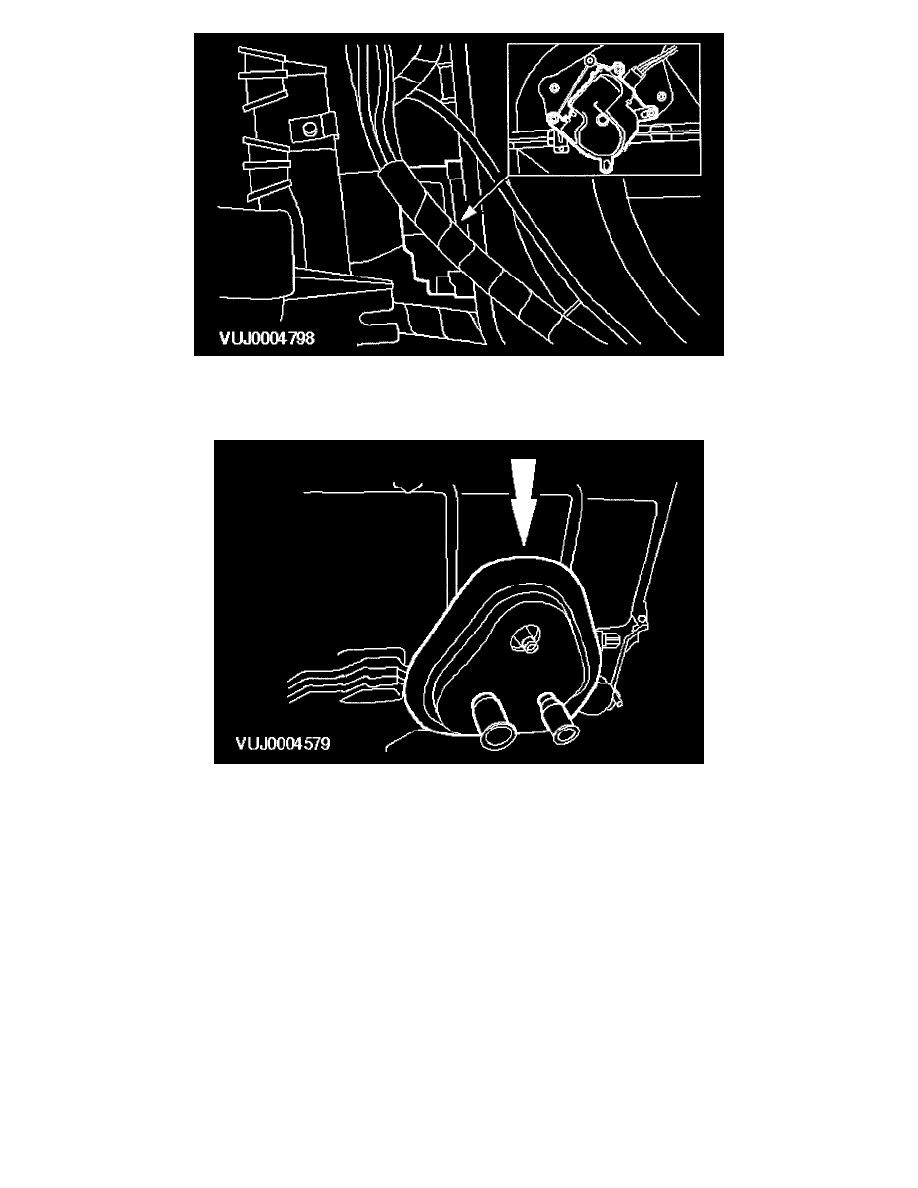

4. Remove the air inlet blend door actuator.

-

Remove the retaining screws.

-

Disconnect the electrical connector.

5. Remove the rubber seal.

Evaporator Core|Description and Operation|Page 5536 > < Evaporator Core|Description and Operation|Page 5534
