Evaporator Core|Description and Operation|Page 5537 > < Evaporator Core|Description and Operation|Page 5535

X-Type (X400) V6-3.0L (2002)

Page 3
background image

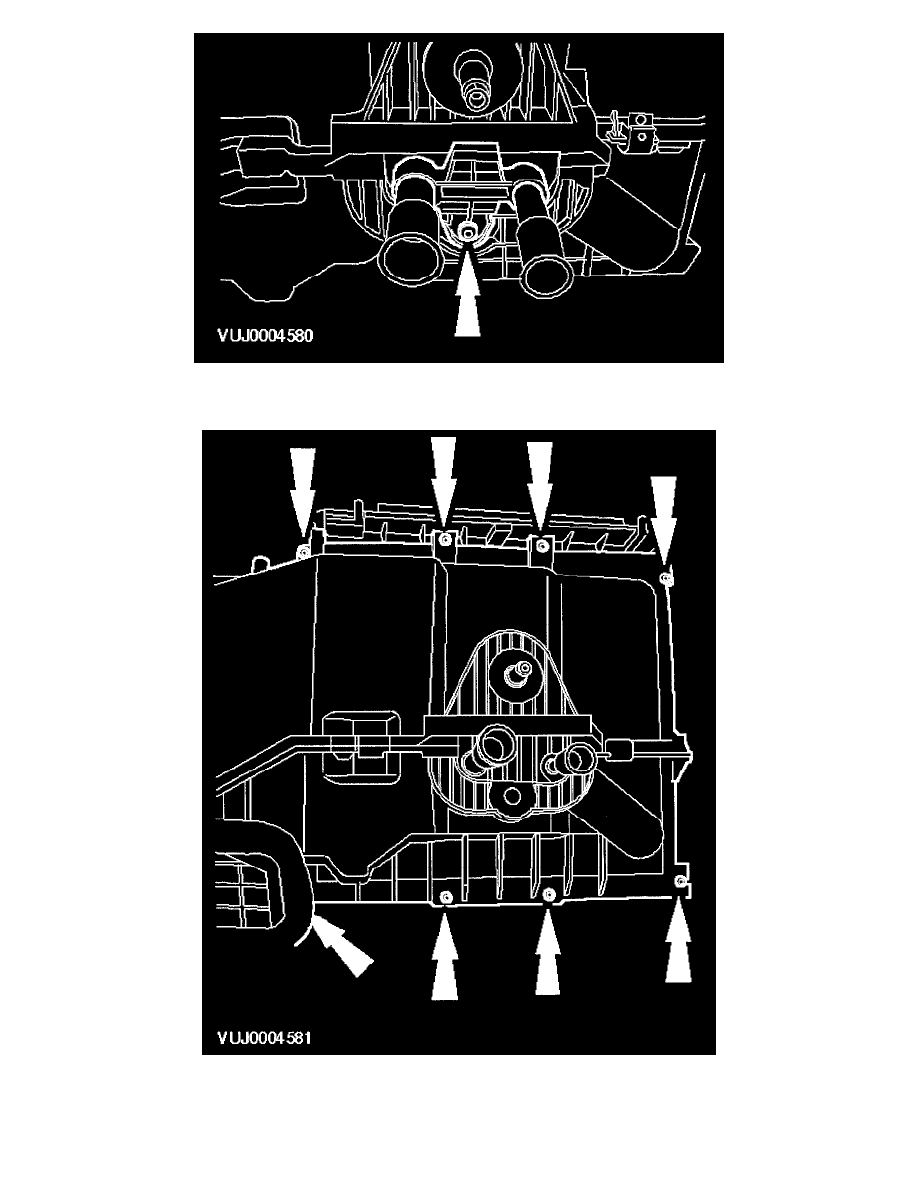

6. Remove the evaporator core support bracket.

-

Remove the retaining screw.

7. Remove the evaporator core housing.

Evaporator Core|Description and Operation|Page 5537 > < Evaporator Core|Description and Operation|Page 5535
