X-Type (X400) V6-3.0L (2002)
/v6-3.0l/Page-1296001.png)

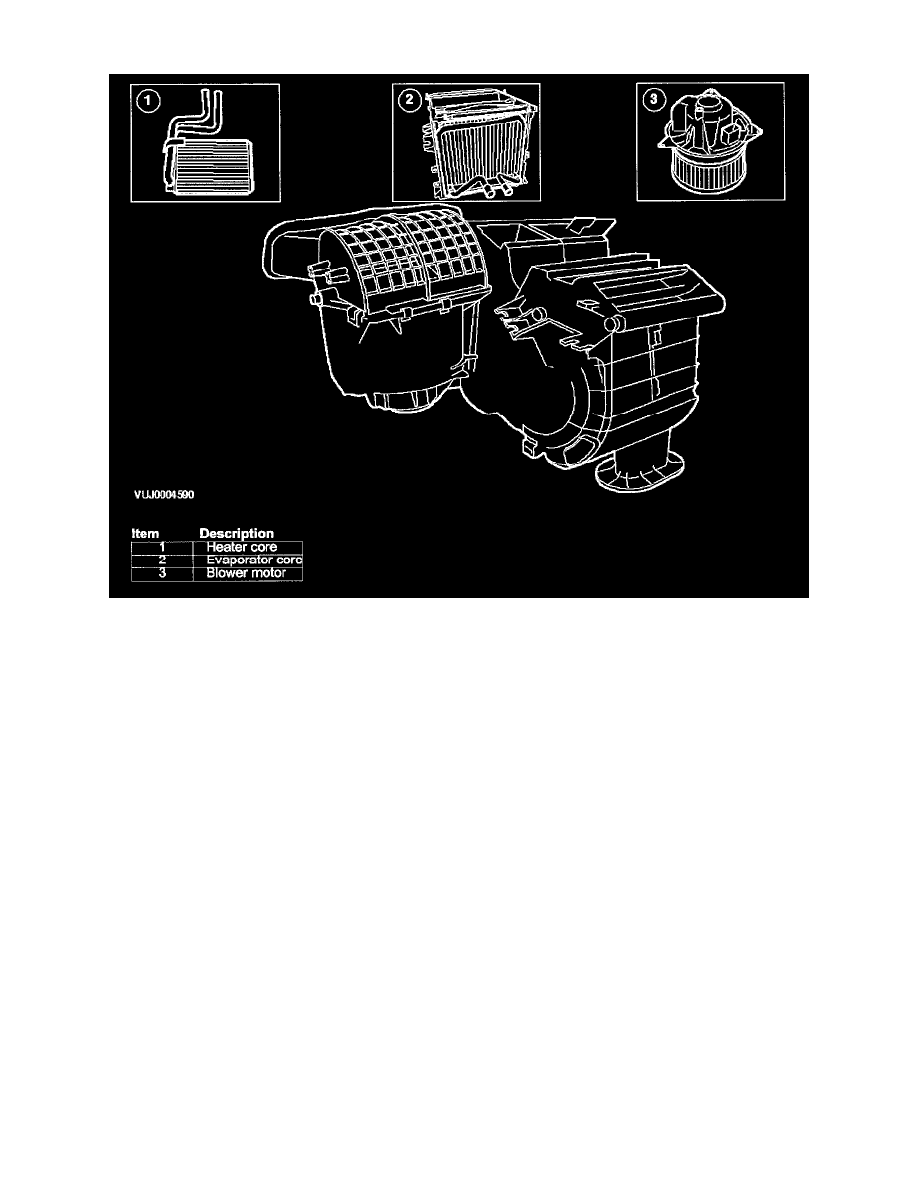

Heater Core: Description and Operation
The heater core consists of fins and tubes arranged to extract heat from the engine coolant and transfer it to air passing through the heater core. Air
passing through the heater core is then directed to the relevant register.
