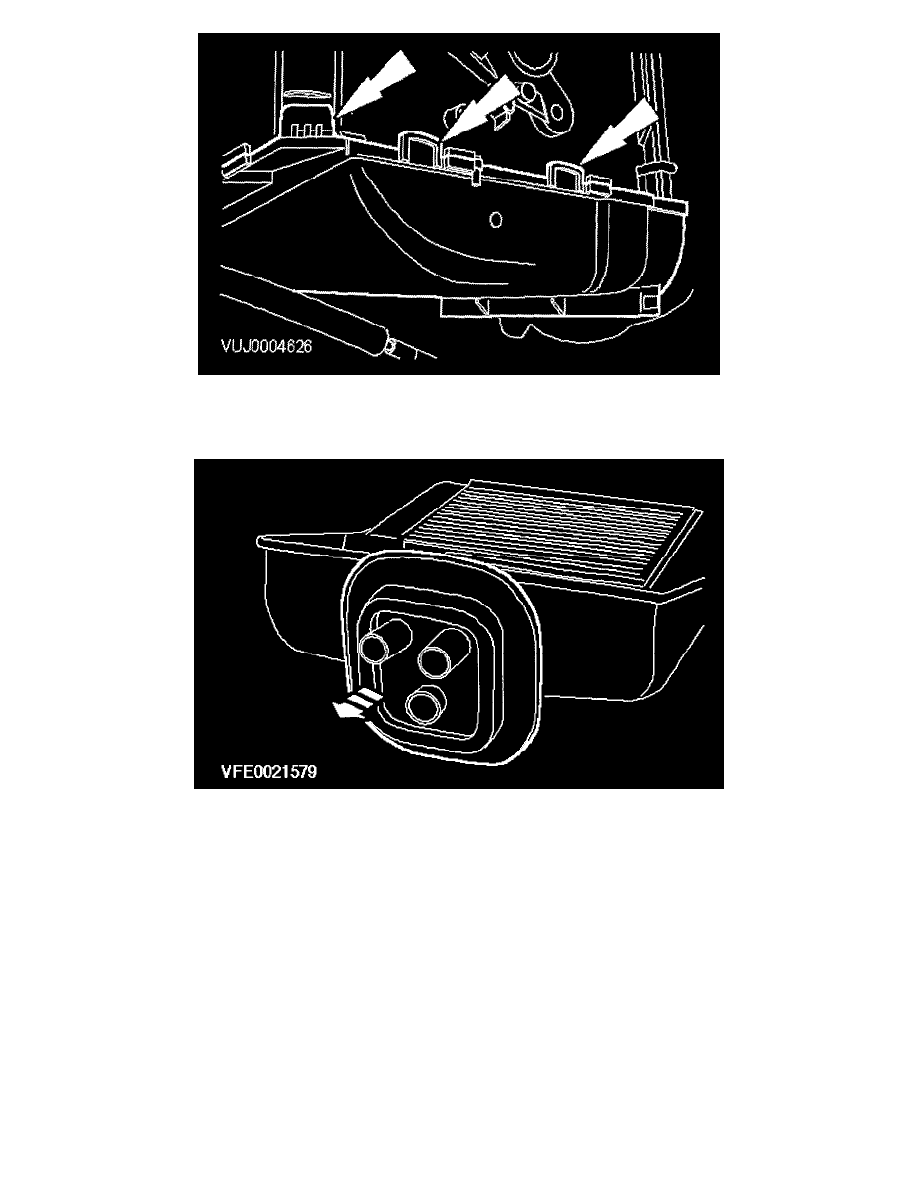

9. Remove the heater core housing

-

Release the heater core housing retaining tabs.

-

Right-hand side shown, left-hand side similar.

10. Remove the seal.
