X-Type (X400) V6-3.0L (2002)

Page 1
background image

Combination Switch: Service and Repair
Multifunction Switch - Direction Indicators



Removal

1. Disconnect the battery ground cable.

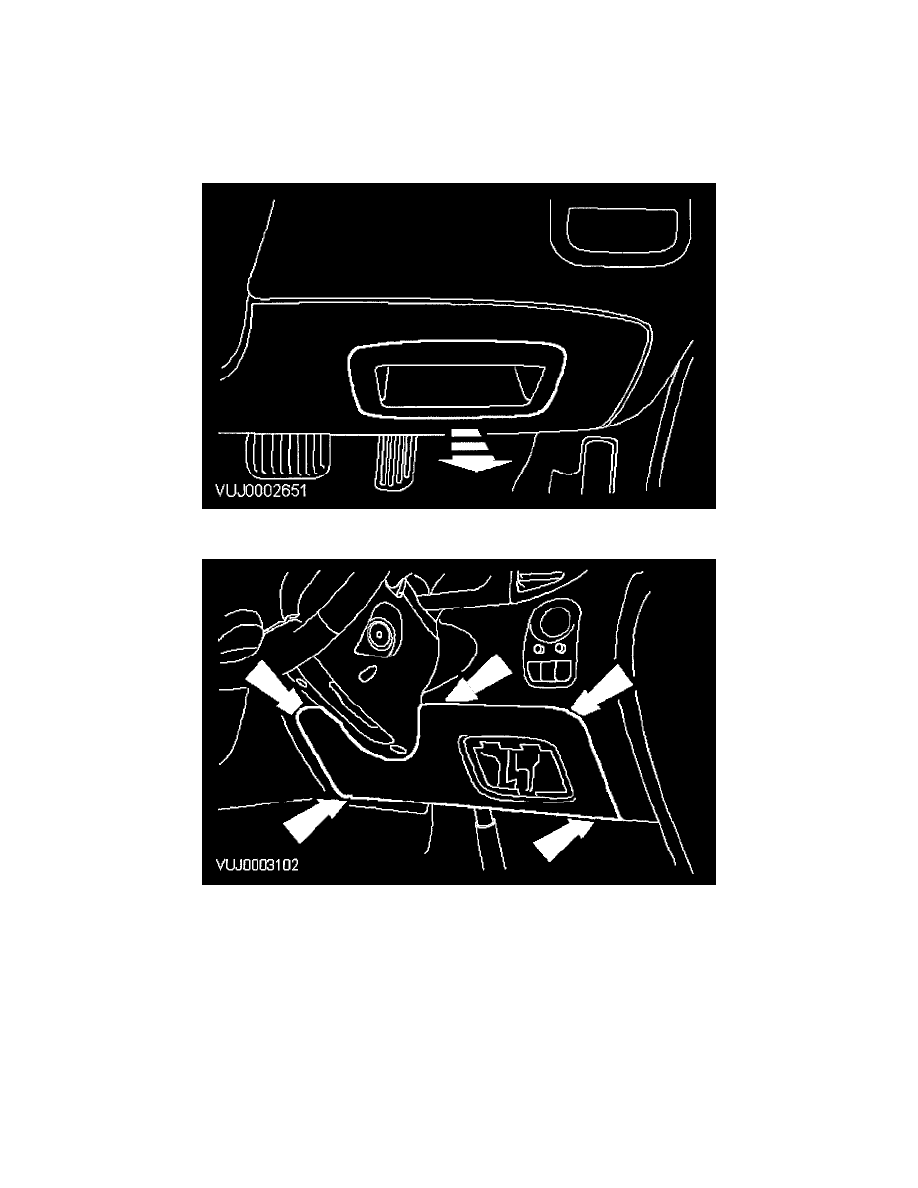

2. Remove the driver side instrument panel lower trim panel pocket.

3. Remove the driver side instrument panel lower trim panel.
