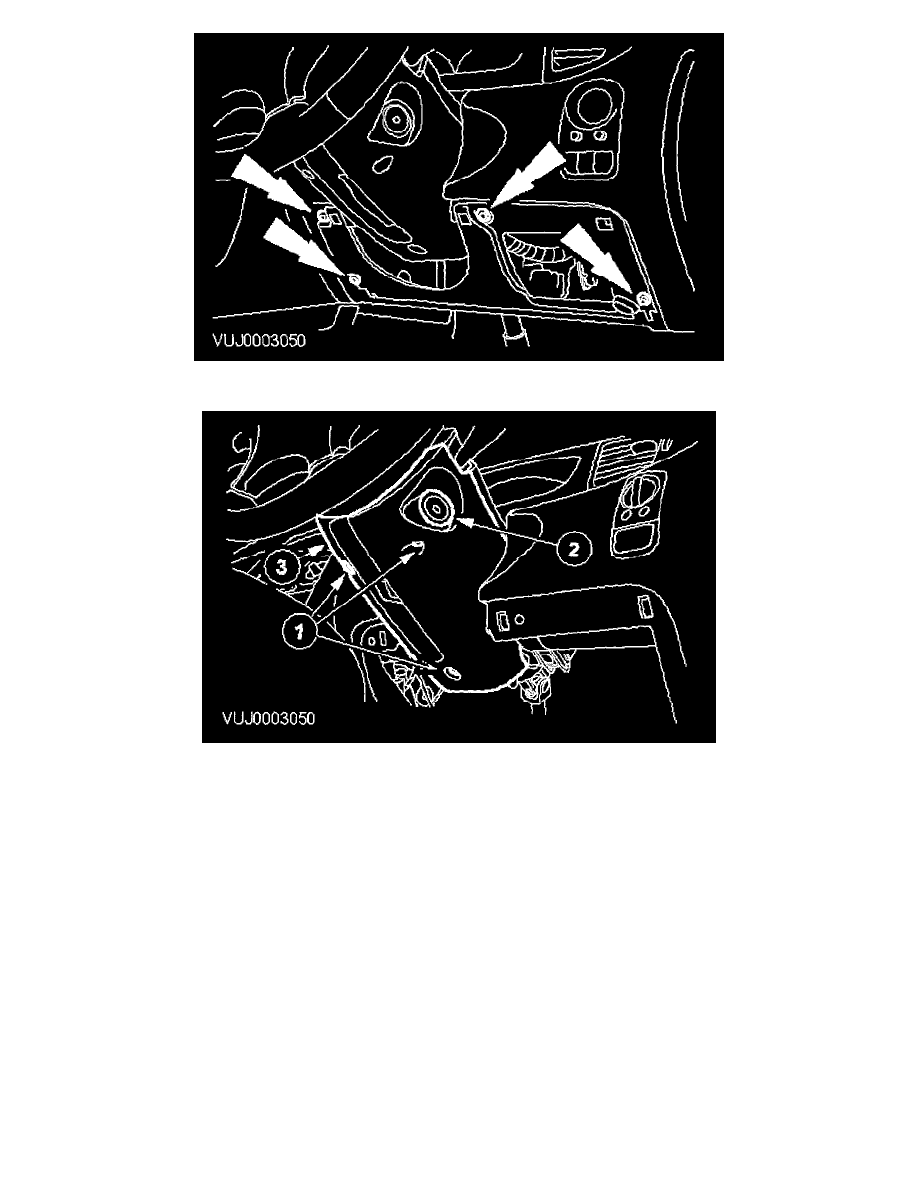

4. Remove the driver side instrument panel lower trim panel retaining bracket.
5. Remove the steering column lower shroud.
1. Remove the steering column lower shroud retaining screws.
2. Remove the ignition switch lock cylinder grommet.
3. Remove the steering column lower shroud.
