X-Type (X400) V6-3.0L (2002)
/v6-3.0l/Page-1206003.png)
8. Remove the engine roll restrictor.
-
Remove the engine roll restrictor retaining bolt.
Note: If installed, remove and discard the gasket.

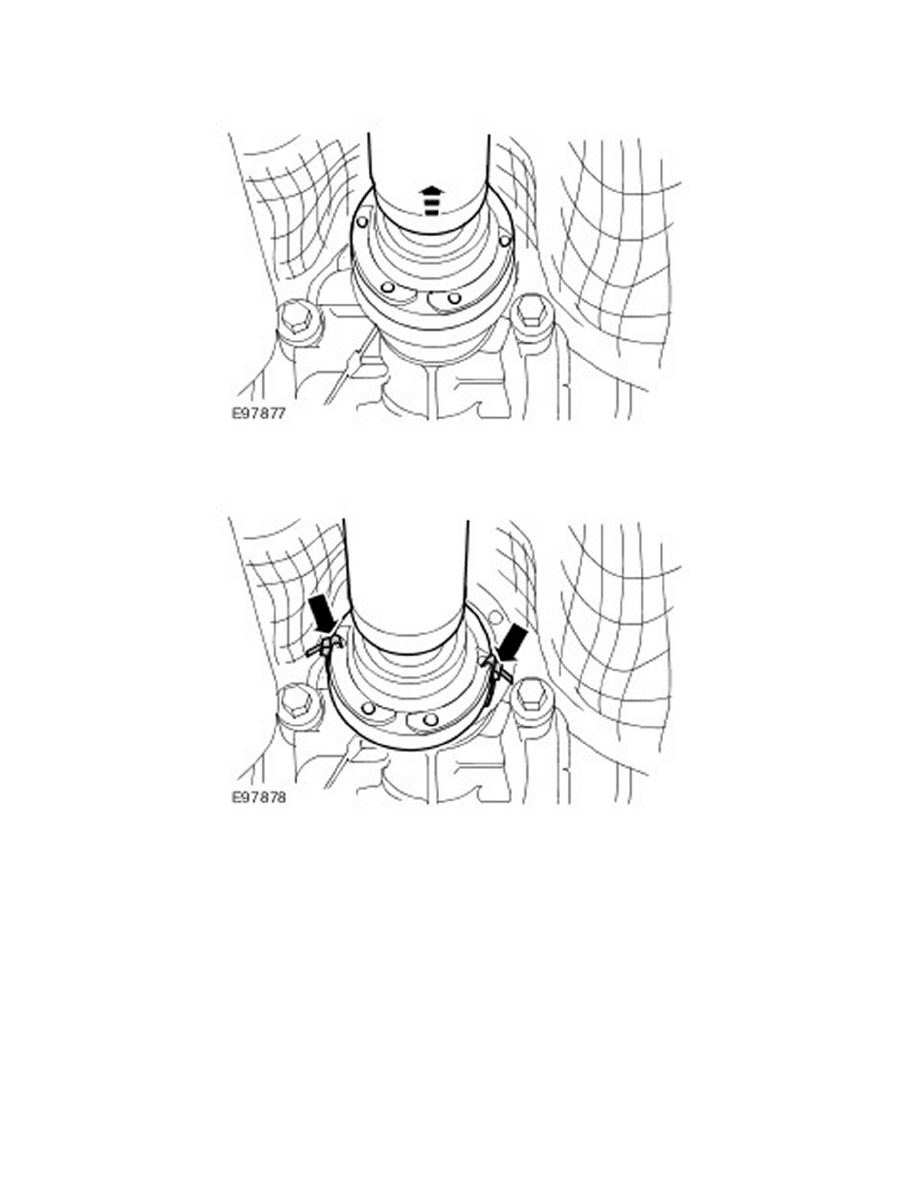

9. Detach the driveshaft from drive pinion flange.
-
Remove and discard the driveshaft retaining bolts and link washers.
10. Using suitable tie straps, secure the outer casing of the driveshaft universal joint.
CAUTION: Make sure that the driveshaft does not hang on the center universal joint. Failure to follow this instruction may result in damage to the
driveshaft.
