X-Type (X400) V6-3.0L (2002)
/v6-3.0l/Page-1206006.png)

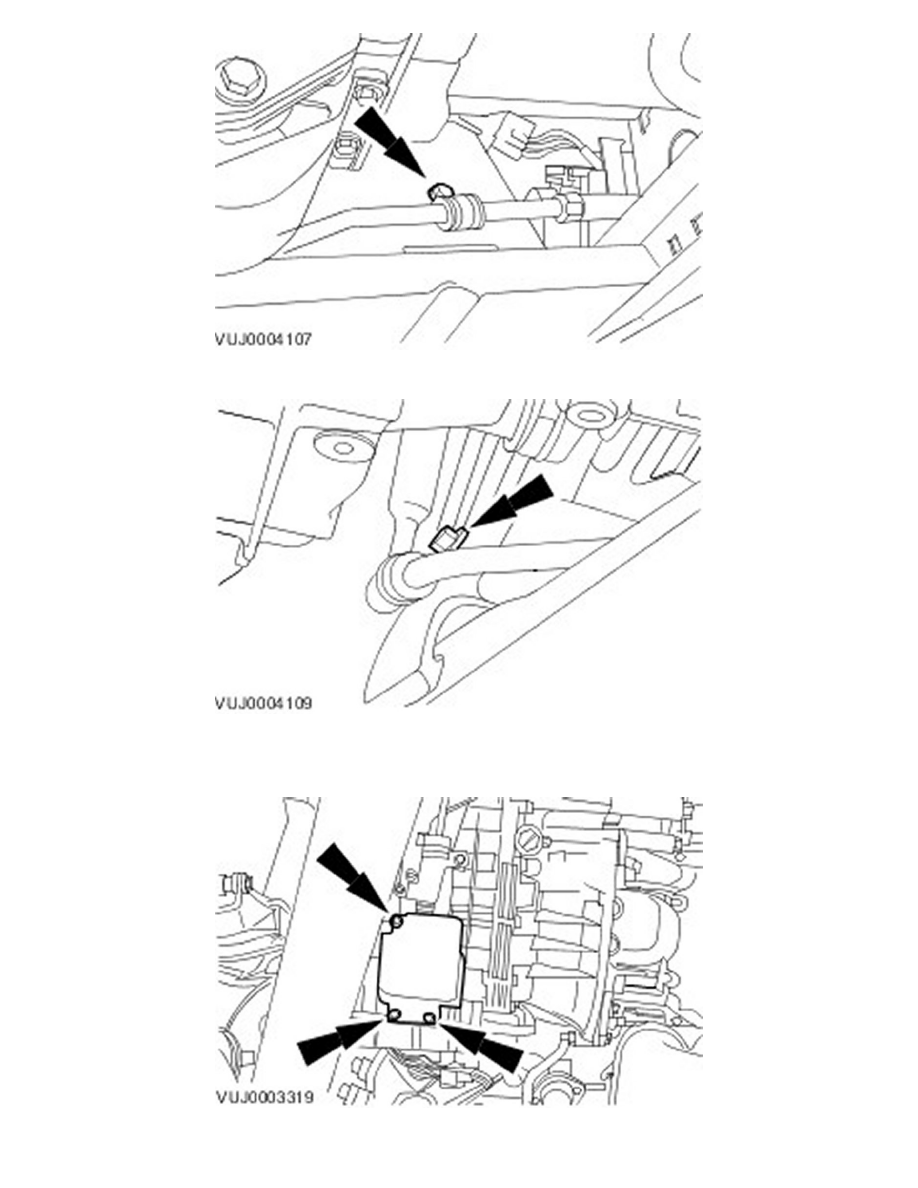

15. Detach the front of the steering gear cooling pipe.
16. Detach the rear of the steering gear cooling pipe.
Vehicles with automatic transmission
17. Remove the selector cable shield.
