X-Type (X400) V6-3.0L (2002)

Page 3
background image

Removal

1. Remove the front subframe

2. NOTE:  Note the orientation of the bushing before removal.

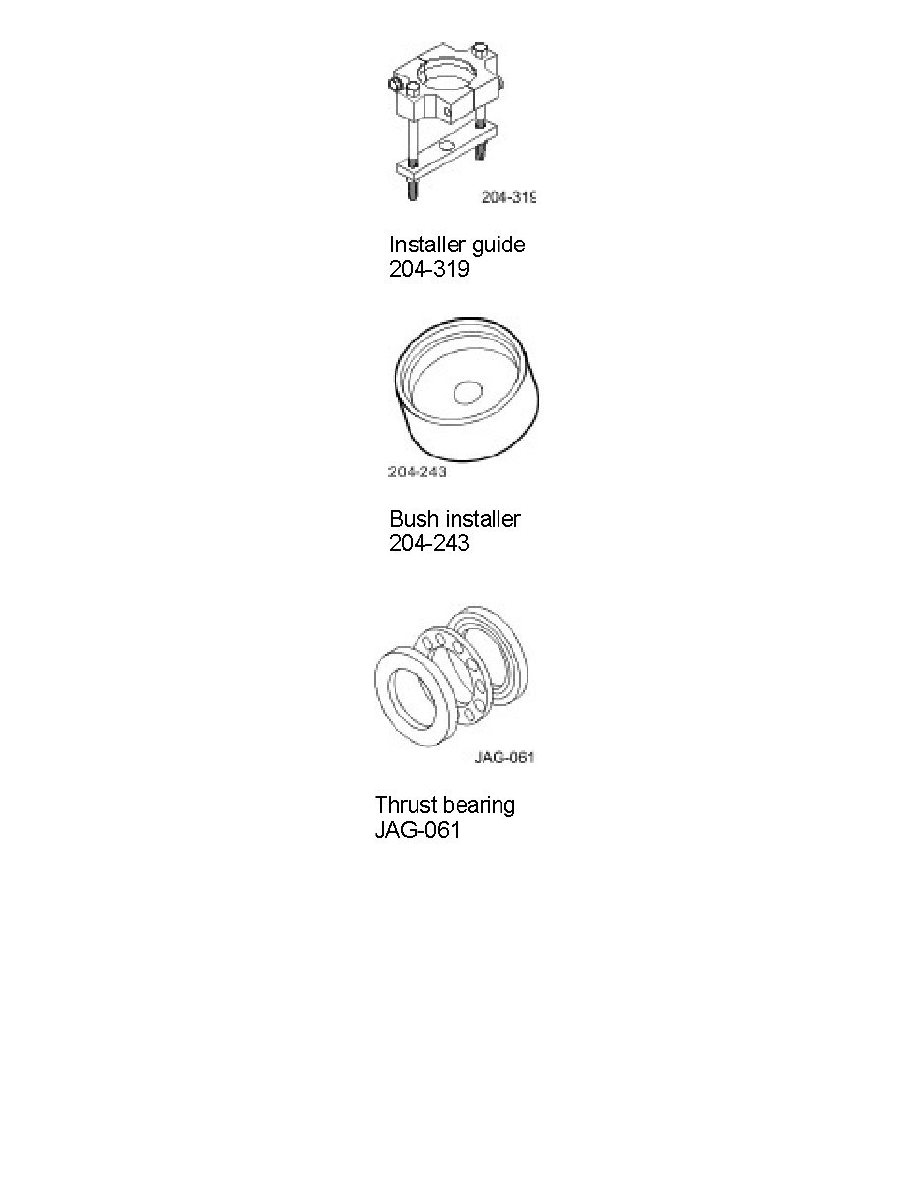

Using the special tools, remove the front subframe mounting bushing.
