X-Type (X400) V6-3.0L (2002)
/v6-3.0l/Page-887003.png)

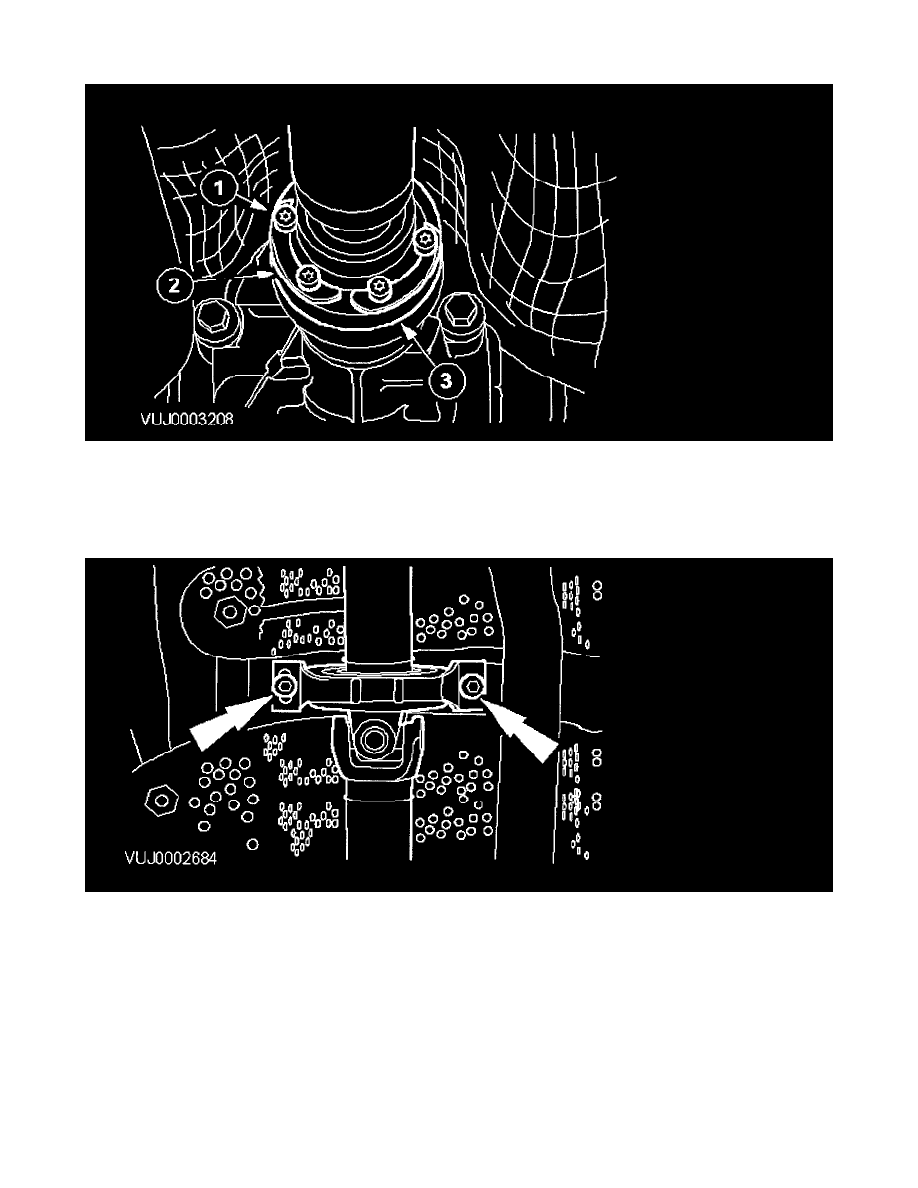

3. Detach the driveshaft front universal joint.
^
Remove and discard the gasket.
3. Detach the driveshaft rear universal joint.
1. Remove and discard the driveshaft rear universal joint retaining bolts.
2. Remove and discard the driveshaft retaining bolts link washer.
3. Detach the driveshaft rear universal joint.
^
Remove and discard the gasket.
4. CAUTION: Support the driveshaft front and rear sections.
Remove the driveshaft.
^
Discard the retaining bolts.
