X-Type (X400) V6-3.0L (2002)

Page 8
background image

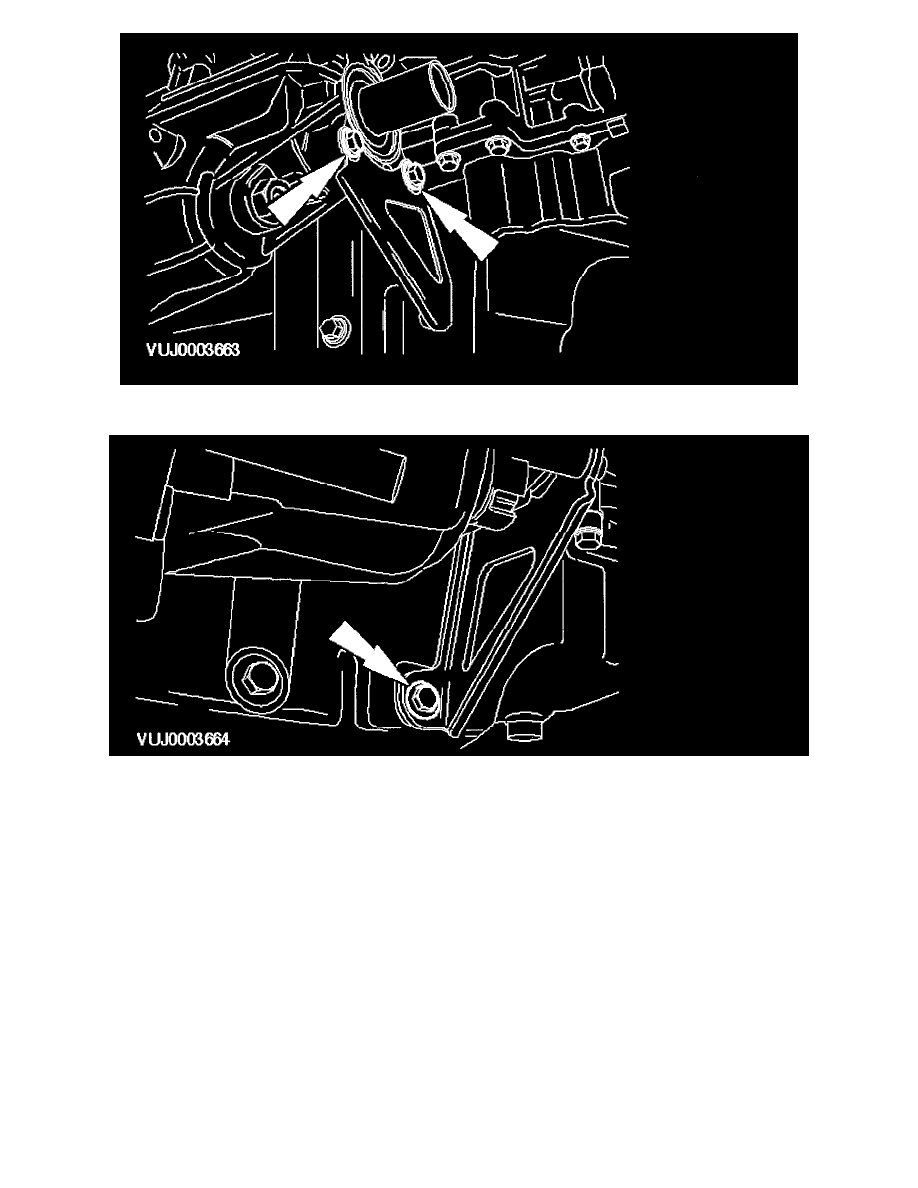

11. Remove the transfer case Y bracket retaining bolts.

12. Remove the Y bracket bottom retaining bolt.
