Rear Output Shaft Oil Seal|Page 3561 > < Rear Output Shaft Oil Seal|Page 3559

X-Type (X400) V6-3.0L (2002)

Page 9
background image

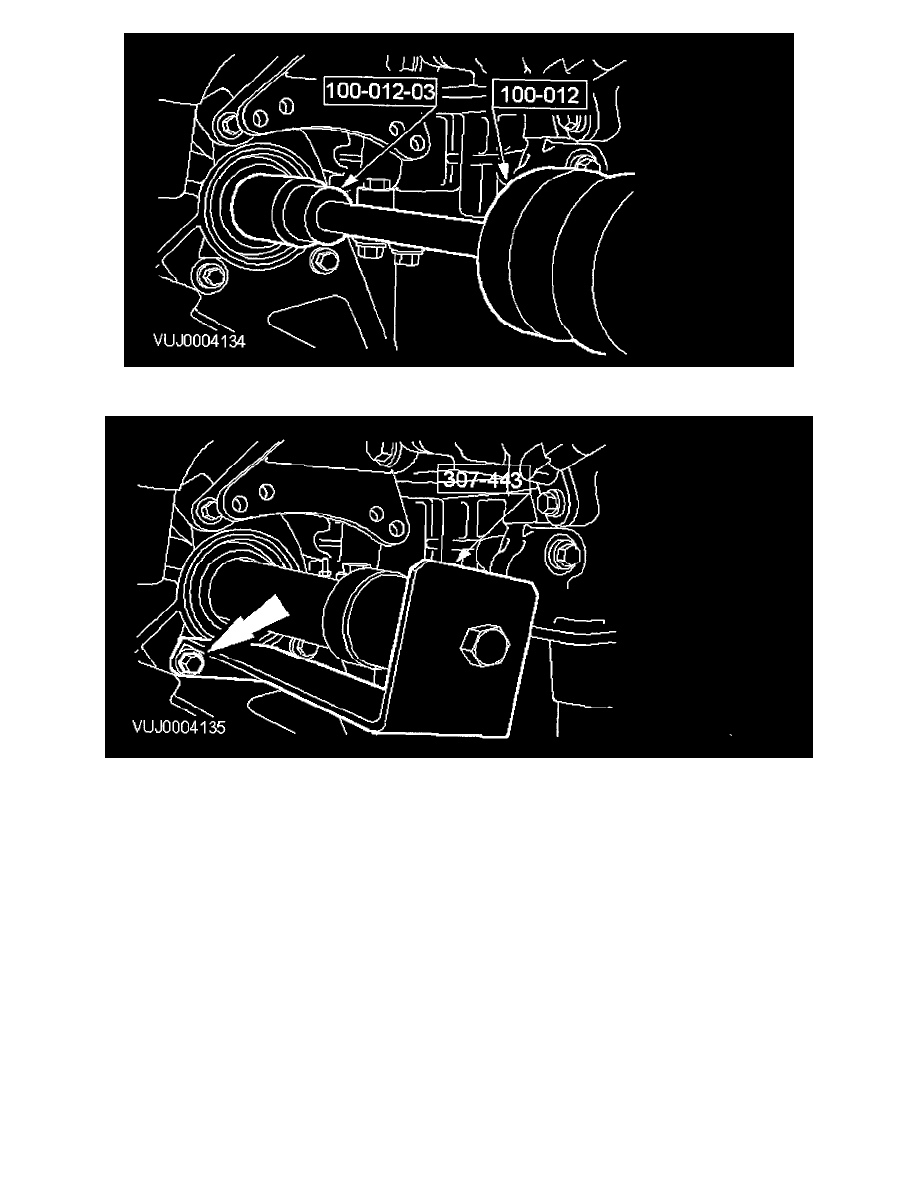

13. Using special tool detach the transfer case link shaft.

14. Using the special tool, retract the transfer case link shaft.

CAUTION:  To prevent damage to the transfer box internal seal, make sure that the link shaft is not retracted further than 200 mm from the
transfer case.

Rear Output Shaft Oil Seal|Page 3561 > < Rear Output Shaft Oil Seal|Page 3559
