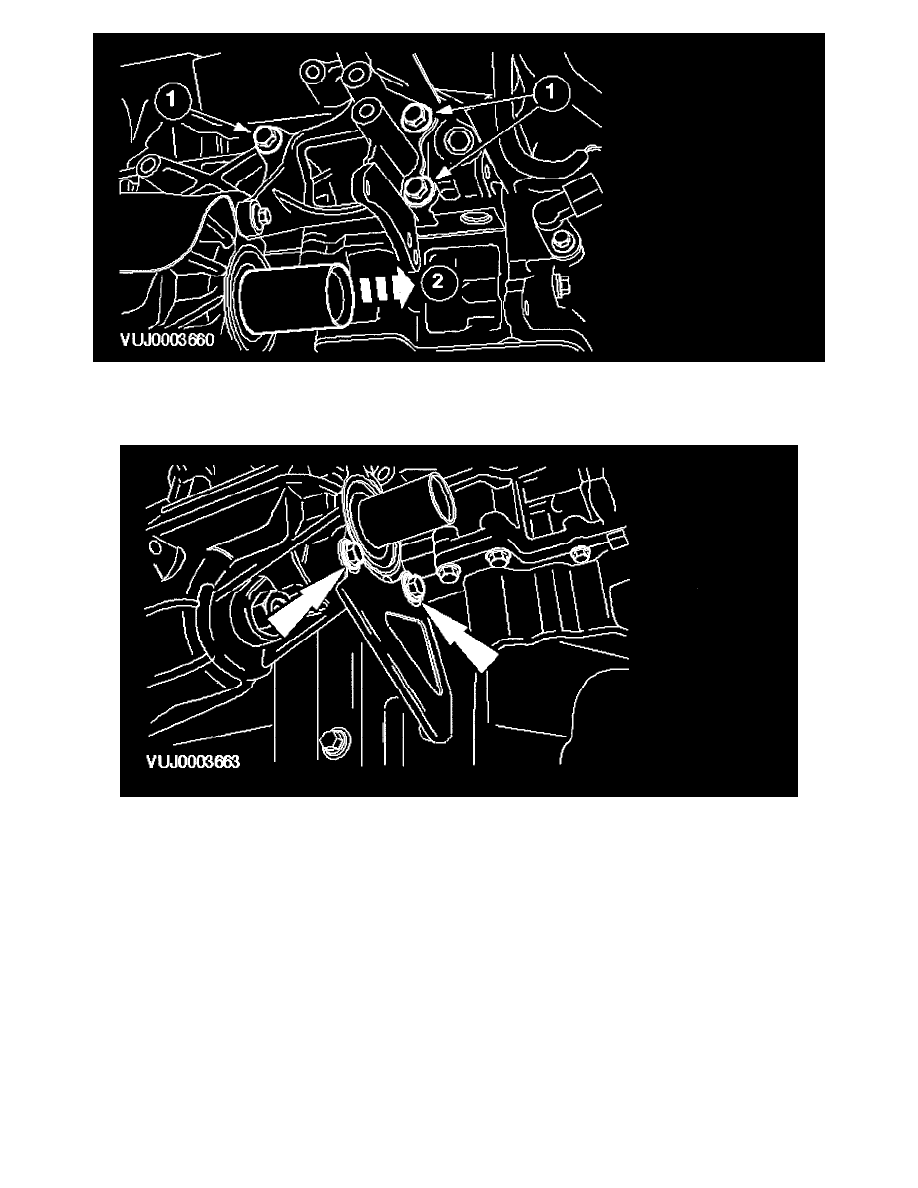

15. Remove the catalytic converter mounting bracket.

1. Remove the catalytic converter mounting bracket retaining bolts.
2. Remove the catalytic converter mounting bracket.

16. Remove the transfer case Y bracket.

1. Remove the transfer case Y bracket retaining bolts.
2. Remove the transfer case Y bracket.
