X-Type (X400) V6-3.0L (2002)

Page 11
background image

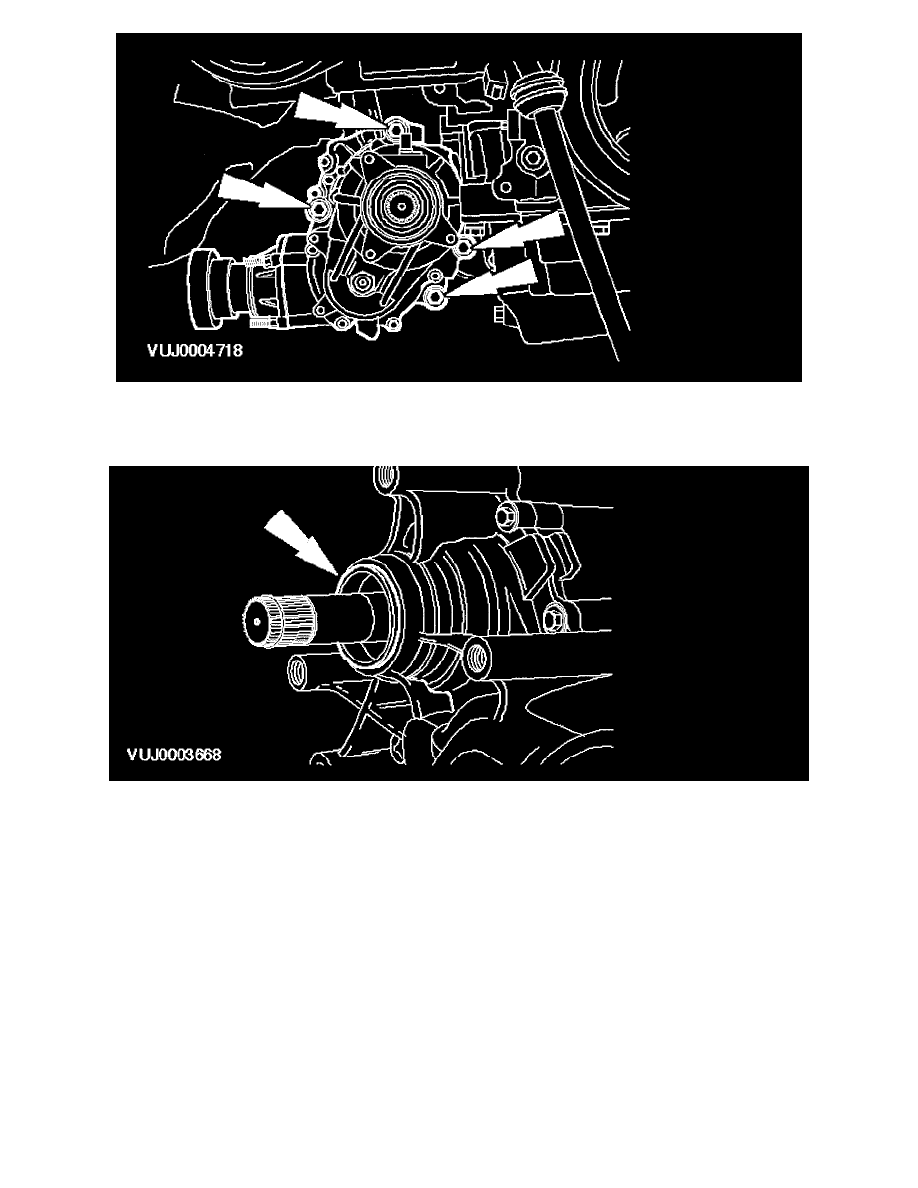

17. Remove the transfer case.

1. Using a suitable transmission stand, support the transfer case.
2. Remove the transfer case retaining bolts.

18. Remove the O-ring seal.
