X-Type (X400) V6-3.0L (2002)

Page 1
background image

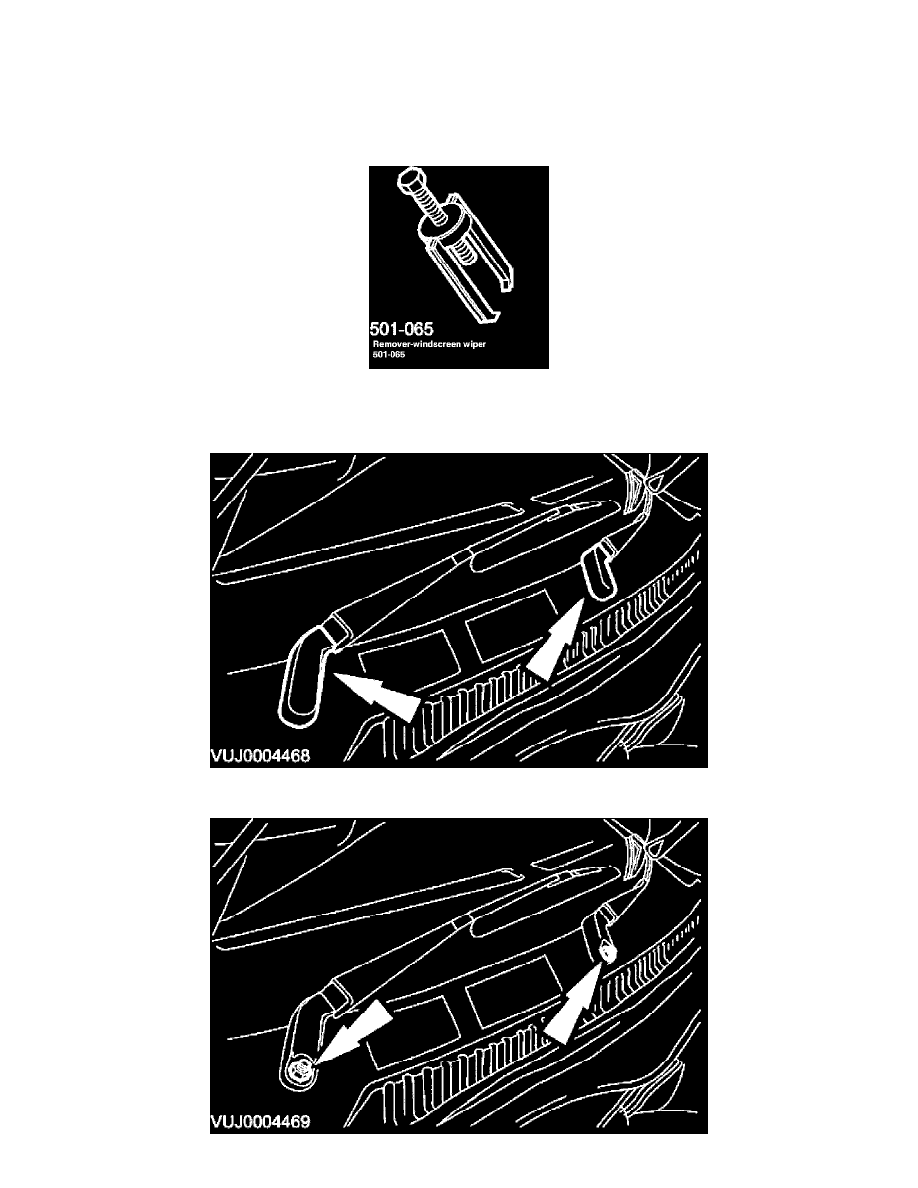

Wiper Arm: Service and Repair
Wiper Pivot Arm

Wiper Pivot Arm

Special Service tools

Remover - Windscreen Wiper

Removal

1. Remove the wiper arm nut covers
