Towing Information: Service and Repair

Vehicle Recovery

NOTE:  Prior to vehicle recovery, make sure that the vehicle keys are available and the security system is disarmed.

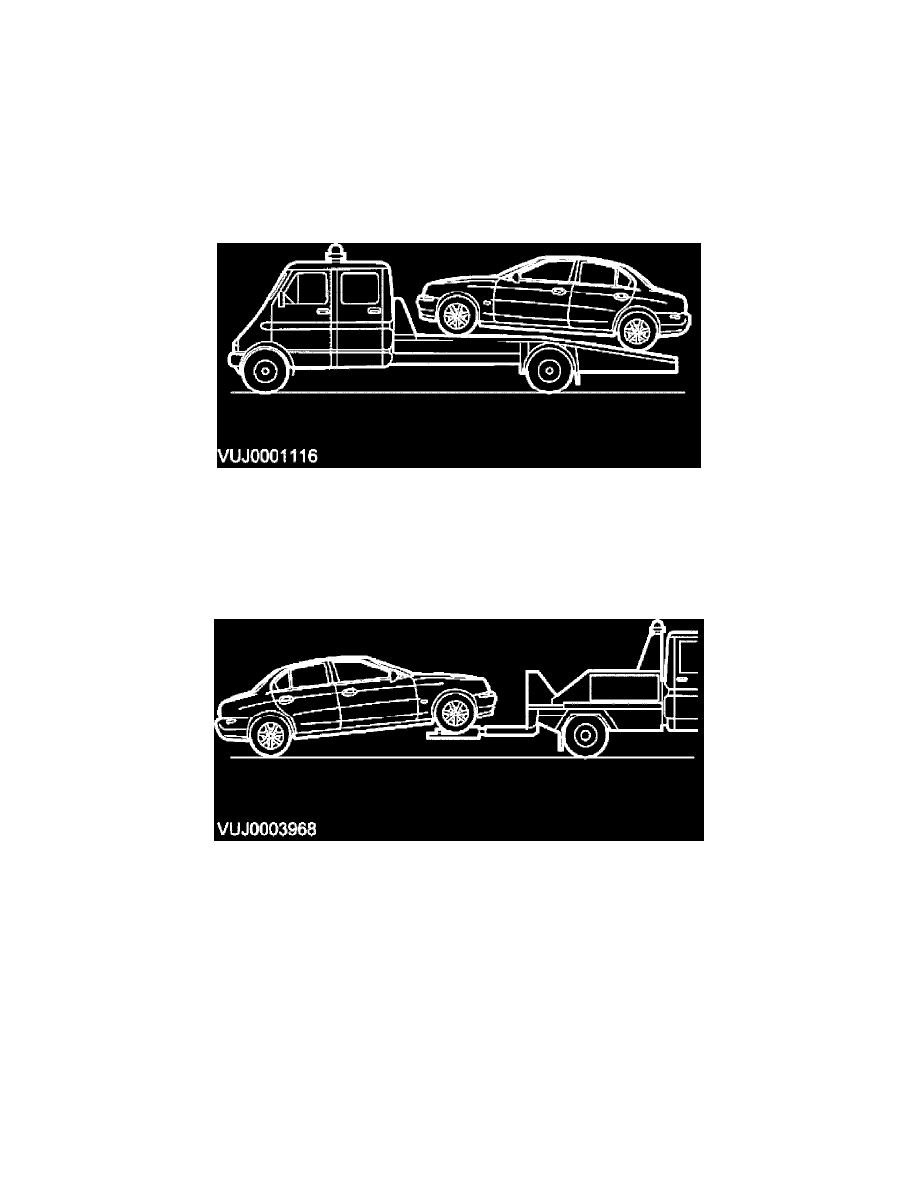

Vehicle recovery methods are:

-

By flat-bed transporter.

-

By front suspended tow.

Transporter or Trailer Recovery

When the vehicle is being recovered by transporter or trailer:

-

The parking brake must be applied and the wheels chocked.

-

The gear selector lever must be in NEUTRAL. Do not select PARK on automatic transmission vehicles, as the parking lock mechanism may be
damaged by the forward and backward rocking motion of the vehicle.

-

The vehicle must be securely tied down to the transporter or trailer.

Front Suspended Tow

When the vehicle is being recovered by front suspended tow:

CAUTION:  The driveshaft must be disconnected.

-

The ignition key must be removed from the ignition switch to lock the steering.

-

The front wheels must be correctly positioned in the lifting cradle and securely tied down.

Emergency Towing-Vehicles fitted with manual transmission:

WARNING:  If the engine is not running, the steering will become heavy and the force necessary to effectively apply the brakes will be greatly
increased.

CAUTION:  A vehicle with a defective transmission must be towed by front suspended tow.

When the vehicle is being towed with all four wheels on the ground:

-

Local regulations for the towing of vehicles must be followed. In some countries the registration number of the towing vehicle and an 'On Tow'
sign or warning triangle must be displayed at the rear of the towed vehicle.
