Drive Belt: Specifications (page 2 of 3)
- Make
- Jaguar
- Model
- XJ-6L (X300)
- Engine
- L6-4.0L (AJ16)
- Year
- 1997
- Section
- Drive Belt
MaintenanceSpecifications · page 2 of 3
/l6-4.0l_(aj16)/Page-249001.png)
Drive Belt: Description and Operation

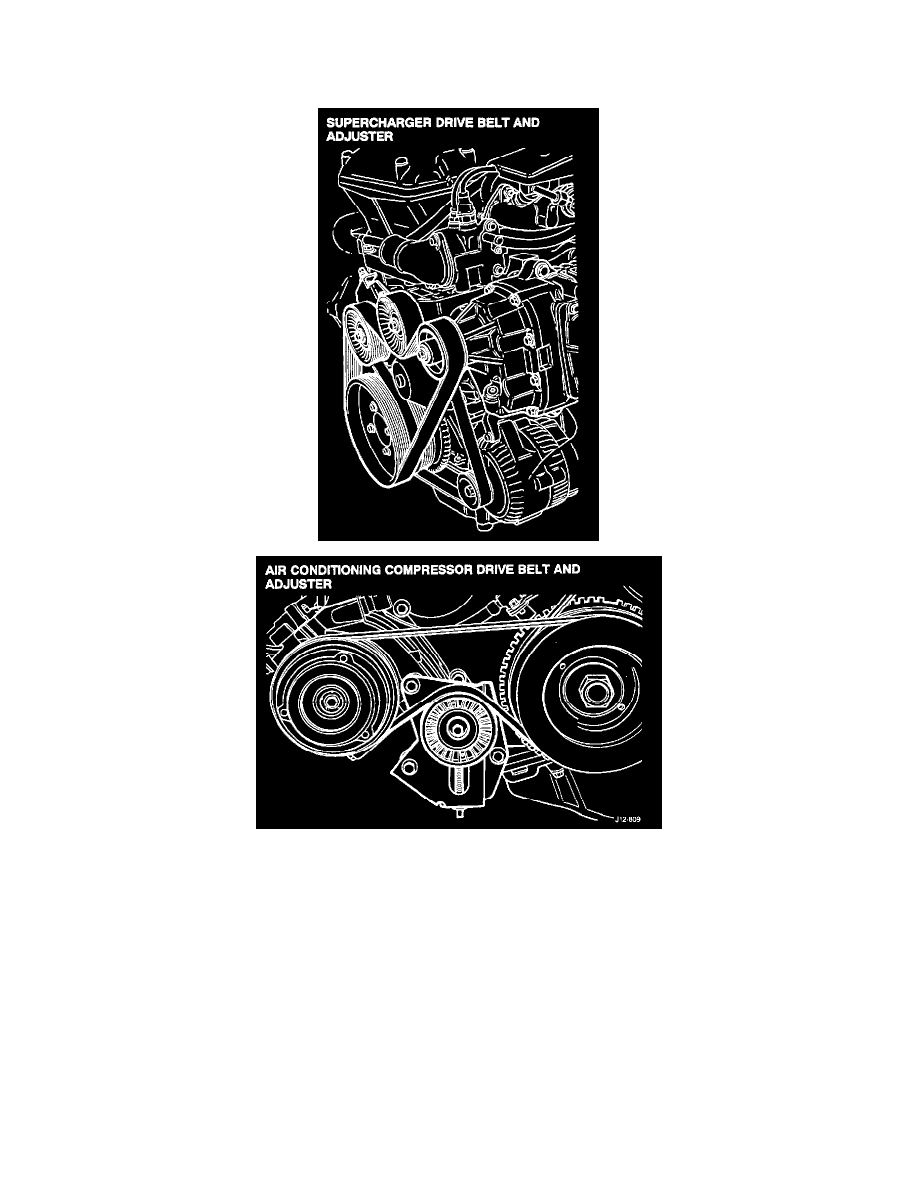

Accessory Drive Belt
With the introduction of the electric air injection pump in place of the belt driven version the related drive belt is deleted.
A new, four ribbed drive belt with revised tension settings is introduced for the power assisted steering pump~air conditioning compressor. Belt
tension is adjusted with an idler pulley.
On the SC engine a new, seven ribbed drive belt drives the supercharger from an additional drive pulley installed on the front of the crankshaft. Belt
tension is adjusted with an idler pulley.
