Vehicle Lifting: Service and Repair

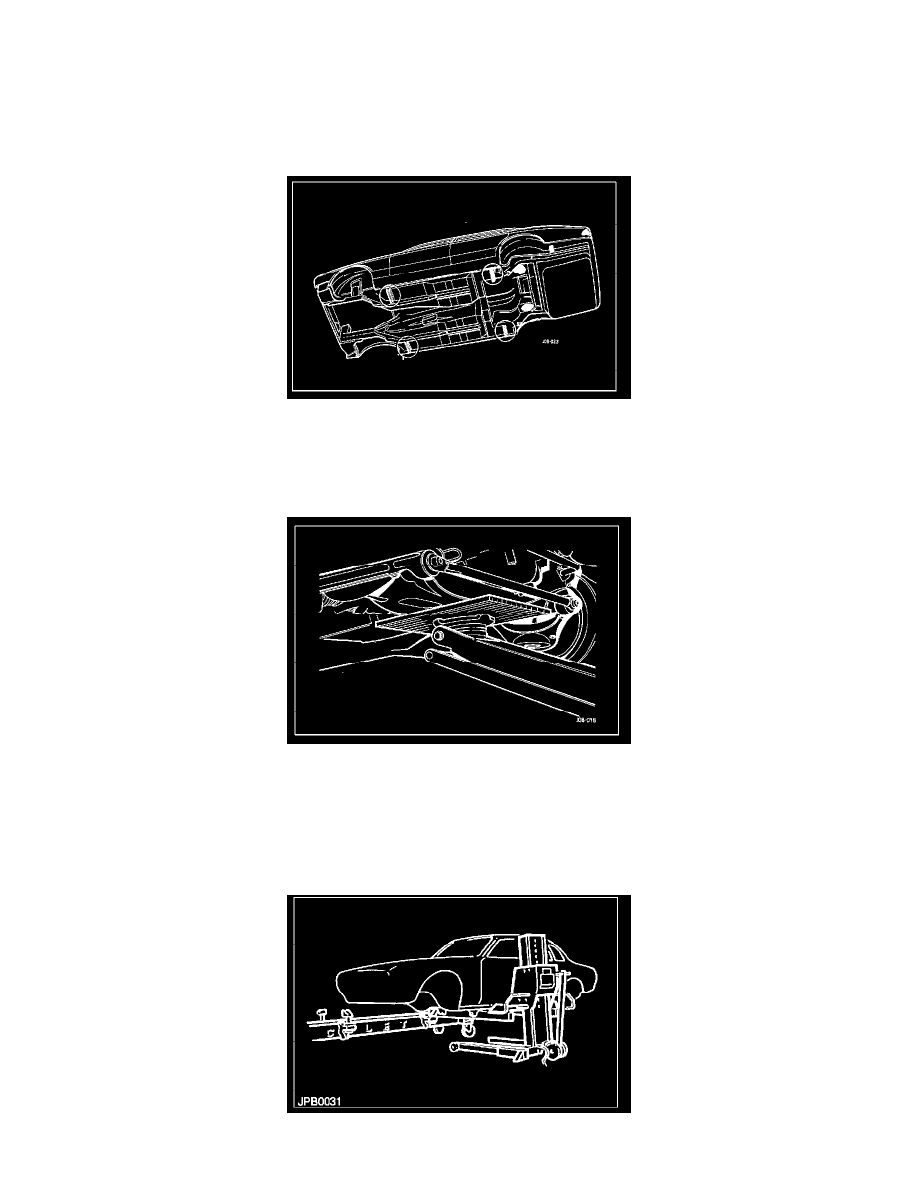

Safe Lifting And Mounting Procedures

Wheel Free Lift

Use a wheel free lift for service and repair operation.

Support the vehicle using lifting pads at the frame jacking points.

Jacking

Position the jacks centrally under the front or rear crossmembers as required using a wooden block

between the jack head and crossmember.

Place axle stand under both front jacking points when vehicle has been raised.

Jig Mounting

Use a 2 post lift or loading trolley.

Fit rubber support blocks over forks.
