XJ (X350) V8-4.2L (2005)
/v8-4.2l/Page-1546001.png)

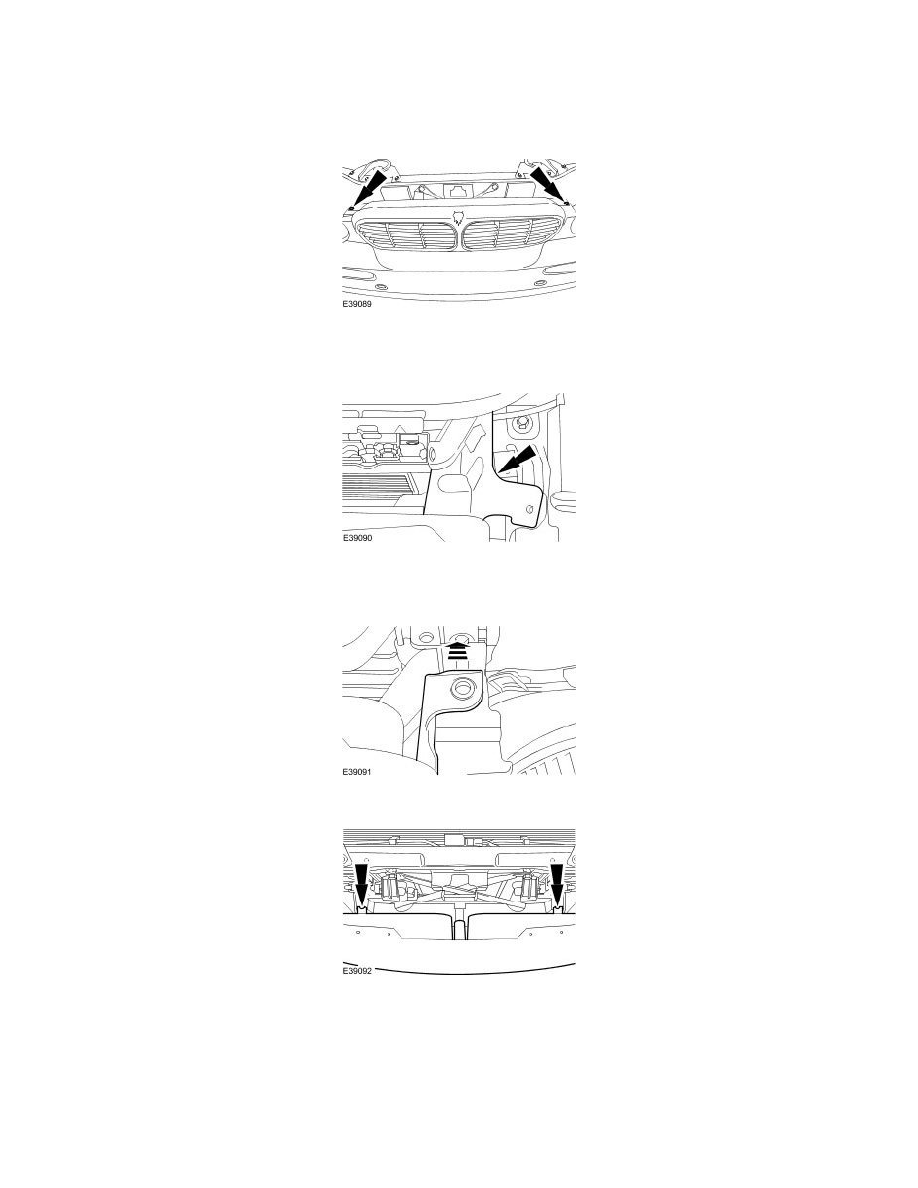

Grille: Service and Repair
Radiator Grille
Removal
1. Remove the radiator grille retaining bolts.
2. NOTE: Left-hand shown, right-hand similar.
Remove the air deflector.
3. NOTE: Left-hand shown, right-hand similar.
Detach the radiator grille.
4. Remove the radiator grille.
Installation
1. NOTE: Check the lower radiator grille retaining legs are fully seated by lifting the rubber skirts after installation.
To install, reverse the removal procedure.
