XJ (X350) V8-4.2L (2005)

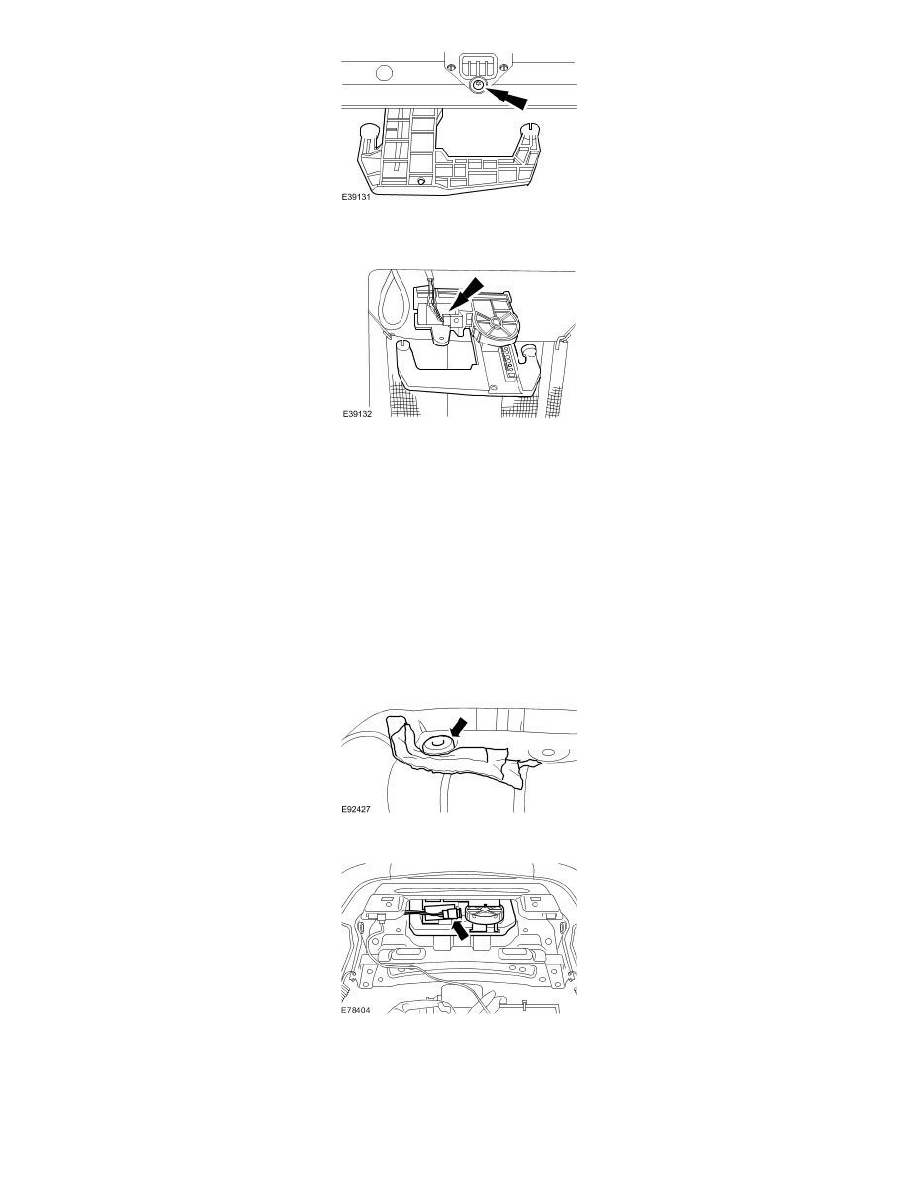

9. Remove the front seat head restraint motor.
-
Disconnect the front seat head restraint motor electrical connector.
Installation
1. To install, reverse the removal procedure.
Front Seat Head Restraint Motor - VIN Range: H18680->H99999
Front Seat Head Restraint Motor - VIN Range: H18680->H99999
Removal
1. Remove the front seat head restraint.
2. NOTE: Apply suitable protective tape around the right-hand head restraint guide tube.
Using a suitable tool, remove the front seat head restraint guide sleeve.
3. Disconnect the front seat head restraint motor electrical connector.
4. Detach and the seat backrest cover from the front seat backrest frame.
