205-01 Driveshaft (Driveshaft): Description and operation
- Make
- Jaguar
- Model
- XJ-8 XJ Sedan (X308) Factory Service Manual
- Year
- 2002–2003
- Section
- 205-01 Driveshaft › Description and operation › Driveshaft
ChassisDriveshaft

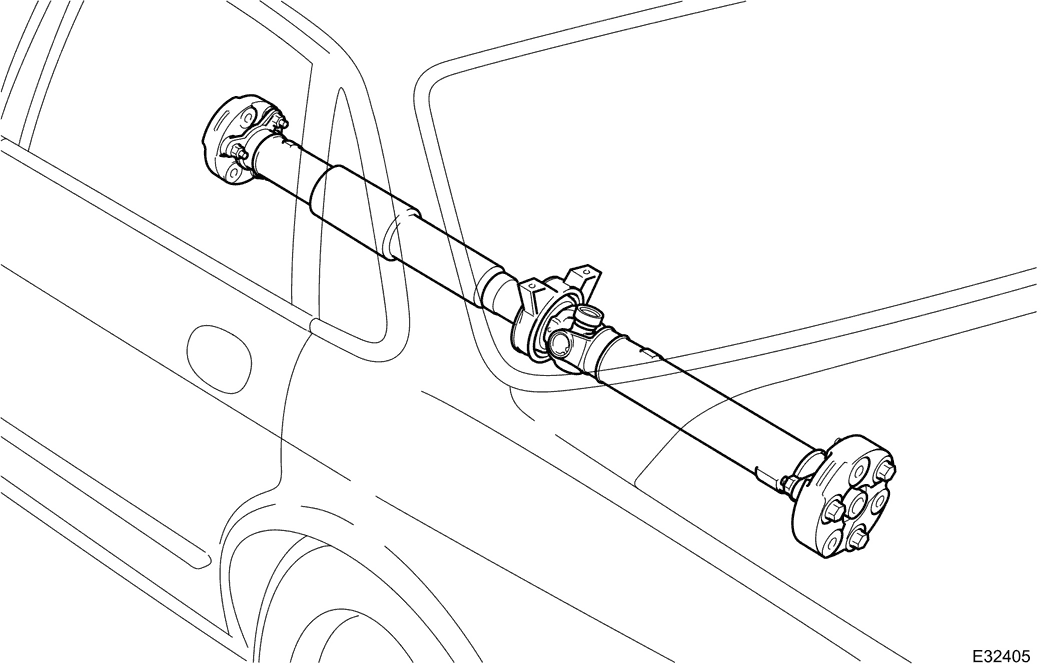

Driveshaft
- 1 Flexible (Jurid) coupling at the transmission flange
- 2 Center bearing
- 3 Front tube, including deformable section
- 4 Flexible (Jurid) coupling at the final drive flange
